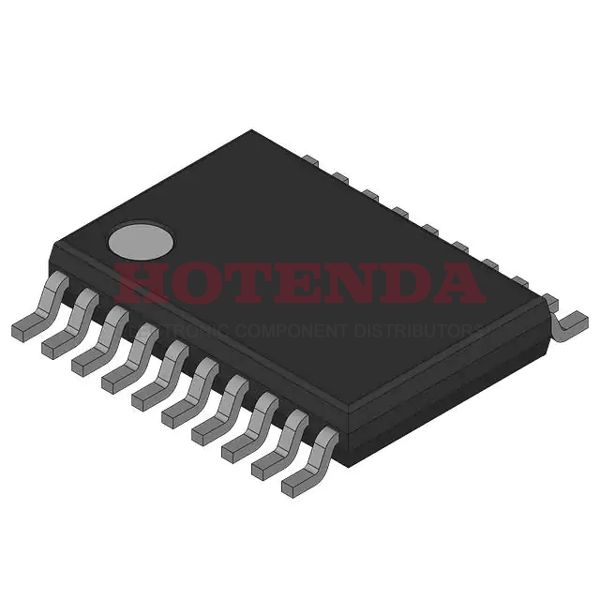

MC9S08PA4AVTJ

MC9S08PA4AVTJ Overview

In a 20-TSSOP (0.173, 4.40mm Width) package, the MCU is available. There are 4 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. This Microcontroller is based on the 8-Bit core. There is a FLASH type of memory for its program. -40°C~105°C TA is the temperature range at which this Microcontroller operates. A S08 series electrical component is used in this application. This program memory has a size of 4KB 4K x 8, which indicates what the size of the program memory is. ICs for MICROCONTROLLER uPs/uCs/peripheral parts. During the manufacturing process, 20 terminations were applied to the IC chip. The part works on a 8-bit basis. Microcontroller chip has outputs of 5V volts. There are NO DMA channels on this Microcontroller chip. There are YES PWM channels on the device. In terms of frequency, it operates at a 20MHz clock rate.

MC9S08PA4AVTJ Features

• 20-TSSOP (0.173, 4.40mm Width) package

• Mounting type of Surface Mount

MC9S08PA4AVTJ Applications

There are a lot of NXP USA Inc. MC9S08PA4AVTJ Microcontroller applications.

• Ipad

• Scanners

• Torpedo guidance

• Missile control

• Accu-check

• Pacemakers

• Fire detection & safety devices

• Mobile computers

• Data acquisition and control

• Auto-breaking system
