Name: LPC54S018JET180E
Brand: NXP USA Inc.
SKU: LPC54S018JET180E
Availability: InStock

new-10%

LPC54S018JET180E

Manufacturer part number:LPC54S018JET180E

Manufacturer:NXP USA Inc.

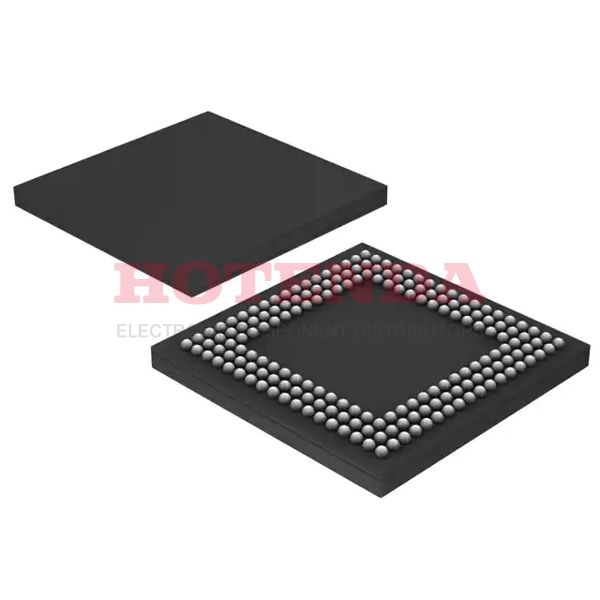

Description:ROMless ARM® Cortex®-M4 32-Bit Microcontroller LPC540xx Series 180-TFBGA

Case Package:SOT-23

Datasheet:LPC54S018JET180E Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	180-TFBGA
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	LPC540xx
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Oscillator Type	Internal
Number of I/O	145
Speed	180MHz
RAM Size	360K x 8
Voltage - Supply (Vcc/Vdd)	1.71V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Program Memory Type	ROMless
Core Size	32-Bit
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SmartCard, SPI, SPIFI, UART/USART, USB
Data Converter	A/D 12x12b
RoHS Status	ROHS3 Compliant

LPC54S018JET180E Product Details

LPC54S018JET180E Overview

A 180-TFBGA package is included. In total, it has 145 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 32-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is ROMless. The temperature range of this Microcontroller is within the range of -40°C~105°C TA. LPC540xx series components belong to this electrical component. There is a ARM® Cortex®-M4 Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller.
