Name: LPC2367FBD100,551
Brand: NXP USA Inc.
SKU: LPC2367FBD100,551
Price: 23.30000 USD
Availability: InStock

new

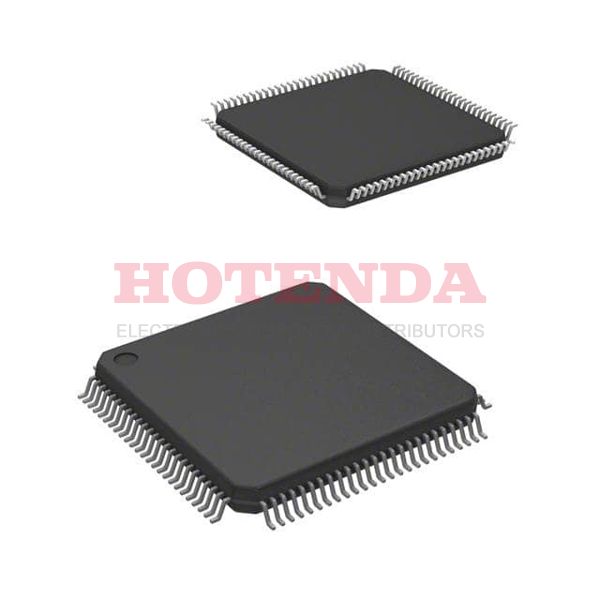

LPC2367FBD100,551

Manufacturer part number:LPC2367FBD100,551

Manufacturer:NXP USA Inc.

Description:512KB 512K x 8 FLASH ARM7® 16/32-Bit Microcontroller LPC2300 Series LPC2367 3.3V 100-LQFP

Case Package:SOT-23

Datasheet:LPC2367FBD100,551 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	100-LQFP
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	LPC2300
Published	2003
JESD-609 Code	e3
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	LPC2367
Pin Count	100
JESD-30 Code	S-PQFP-G100
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Oscillator Type	Internal
Number of I/O	70
Speed	72MHz
RAM Size	58K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM7®
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Clock Frequency	25MHz
Program Memory Type	FLASH
Core Size	16/32-Bit
Program Memory Size	512KB 512K x 8
Connectivity	Ethernet, I2C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART
Supply Current-Max	100mA
Bit Size	32
Data Converter	A/D 6x10b; D/A 1x10b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
ROM (words)	524288
External Data Bus Width	16
Length	14mm
Height Seated (Max)	1.6mm
Width	14mm
RoHS Status	ROHS3 Compliant

LPC2367FBD100,551 Product Details

LPC2367FBD100,551 Overview

There is a 100-LQFP package available. The board has 70 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 16/32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. LPC2300-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 512KB 512K x 8. Powered by a ARM7® Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 100. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of YES DMA channels are available. There are a number of alternatives to the base part number LPC2367 that you can find. Using YES PWM channels, the device works. The pins counted are 100. As far as the clock frequency is concerned, it operates at 25MHz clock speed.
