Name: NTE74C00
Brand: NTE Electronics
SKU: NTE74C00
Price: 5.23000 USD
Availability: InStock

new-10%

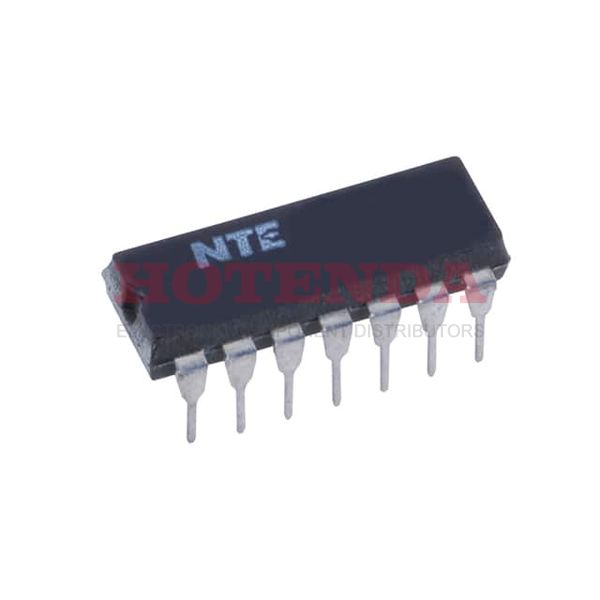

NTE74C00

Manufacturer part number:NTE74C00

Manufacturer:NTE Electronics

Description:Gates & Inverters 3V ~ 15V V

Case Package:SOT-23

Datasheet:NTE74C00 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	14-DIP (0.300, 7.62mm)
Supplier Device Package	14-PDIP
ECCN (US)	EAR99
HTS	8542.39.00.01
Logic Family	74C
Number of Elements per Chip	4
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	90@5V\|60@10V
Absolute Propagation Delay Time (ns)	90
Process Technology	CMOS
Maximum Low Level Output Current (mA)	8(Min)
Maximum High Level Output Current (mA)	-8(Min)
Minimum Operating Supply Voltage (V)	3
Typical Operating Supply Voltage (V)	5\|9\|12\|3.3
Maximum Operating Supply Voltage (V)	15
Propagation Delay Test Condition (pF)	50
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Standard Package Name	DIP
Supplier Package	DIP
Mounting	Through Hole
Package Length	19.95(Max)
PCB changed	14
Lead Shape	Through Hole
Manufacturer	NTE Electronics
Package	Bag
Mfr	NTE Electronics, Inc
Product Status	Active
Operating Temperature	-40°C ~ 85°C
Series	-
Part Status	Active
Voltage - Supply	3V ~ 15V
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
Pin Count	14
Number of Circuits	4
Logic Function	NAND
Number of Inputs	2
Current - Output High, Low	-
Logic Type	NAND Gate
Logic IC Type	NAND GATE
Max Propagation Delay @ V, Max CL	60ns @ 10V, 50pF
Current - Quiescent (Max)	15 µA
Features	-
RoHS Status	RoHS Compliant

NTE74C00 Product Details

NTE74C00 Overview

Shipping overseas is convenient due to the part's packing in 14-DIP (0.300, 7.62mm). According to NAND Gate logic, the algorithm works. A voltage of 3V ~ 15V is needed to ensure full function of the part. The operating temperature is extended to around -40°C ~ 85°C. There is Through Hole mounting in Through Hole. Neither the high - low state of output current is -. A - series product. It is injected into the part body with 14 pins. Inputs support 2. It consists of 4 circuits. A standby mode current of 15 µA is the maximum. There is a package called 14-PDIP offered by suppliers. An all-purpose NAND GATE logic device.
