Name: 820B007-273L301
Brand: NorComp Inc.
SKU: 820B007-273L301
Price: 29.60000 USD
Availability: InStock

new

820B007-273L301

Manufacturer part number:820B007-273L301

Manufacturer:NorComp Inc.

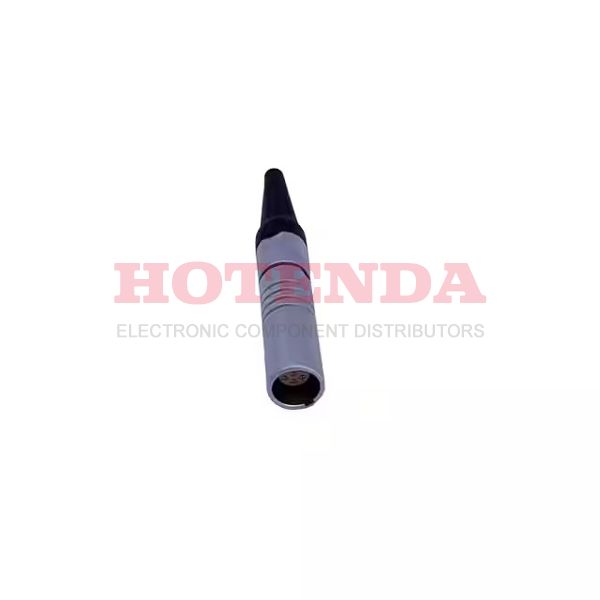

Description:Receptacle, Female Sockets Brass Free Hanging (In-Line) 7 Positions Solder Cup Gold Nickel Tray Keyed Push-Pull

Case Package:SOT-23

Datasheet:820B007-273L301 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Shell Material	Brass
Insert Material	Polyphenylene Sulfide (PPS)
Backshell Material, Plating	Brass, Chrome
Operating Temperature	-40°C~200°C
Packaging	Tray
Series	QUIK-LOQ™ 820B
Published	2017
JESD-609 Code	e4
Feature	Backshell, Strain Relief
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Receptacle, Female Sockets
Number of Positions	7
Color	Black, Silver
Applications	Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications
Voltage - Rated	260V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Current Rating (Amps)	2.5A
Orientation	Keyed
Shielding	Shielded
Ingress Protection	IP50 - Dust Protected
Shell Finish	Nickel
Cable Opening	0.098 ~ 0.126 (2.50mm ~ 3.20mm)
Contact Finish Thickness - Mating	7.00μin 0.178μm
RoHS Status	ROHS3 Compliant
Ratings	IP50

820B007-273L301 Product Details

820B007-273L301 Overview

This product is packaged in a Receptacle, Female Sockets box.Free Hanging (In-Line) indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the QUIK-LOQ™ 820B Series.In many ways, Backshell, Strain Relief makes it more powerful.By Free Hanging, the part is mounted.Operating temperature is set to -40°C~200°C.
