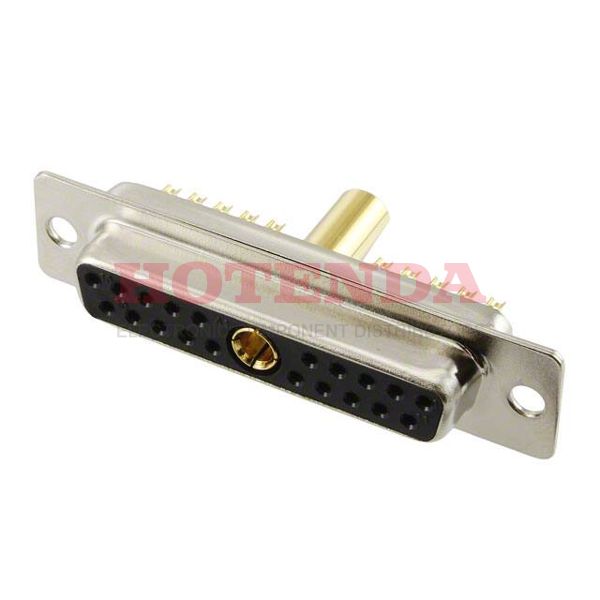

Name: 680M21W1203L401
Brand: NorComp Inc.
SKU: 680M21W1203L401
Price: 11.55000 USD
Availability: InStock

new

680M21W1203L401

Manufacturer part number:680M21W1203L401

Manufacturer:NorComp Inc.

Description:680M21W1203L401 datasheet pdf and D-Sub Connectors product details from NorComp Inc. stock available on our website

Case Package:SOT-23

Datasheet:680M21W1203L401 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Panel Mount
Dielectric Material	Polybutylene Terephthalate (PBT)
Housing Material	PBT
Body Material	Steel
Shell Material, Finish	Steel, Nickel Plated
Operating Temperature	-55°C~125°C
Packaging	Tray
Published	2013
Series	Power-D 680M
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Receptacle, Female Sockets
Number of Positions	21 (20 + 1 Power)
Color	Black
Number of Rows	2
Gender	Receptacle
Contact Type	Signal and Power
Current Rating (Amps)	5A 40A
Pitch	2.77mm
Current Rating	5A
Contact Finish	Gold
Number of Contacts	21
Flange Feature	Housing/Shell (Unthreaded)
Plating	Nickel
Connector Style	D-Sub, Combo
Contact Form	Machined
Shell Size, Connector Layout	3 DB B - 21W1
Number of Power Positions	1
Insulation	Insulated
Height	10.7mm
Contact Finish Thickness	Flash
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

680M21W1203L401 Product Details

680M21W1203L401 Overview

Packaging is Receptacle, Female Sockets.There is a mounting type of Panel Mount for this device.An Tray case is utilized for packaging the product.It is part of the Power-D 680M Series of products.Mounting of the part is based on Free Hanging.In this case, the device operates at -55°C~125°C Operating Temperature.
