Name: WR18AL
Brand: NKK Switches
SKU: WR18AL
Price: 30.64000 USD
Availability: InStock

new

WR18AL

Manufacturer part number:WR18AL

Manufacturer:NKK Switches

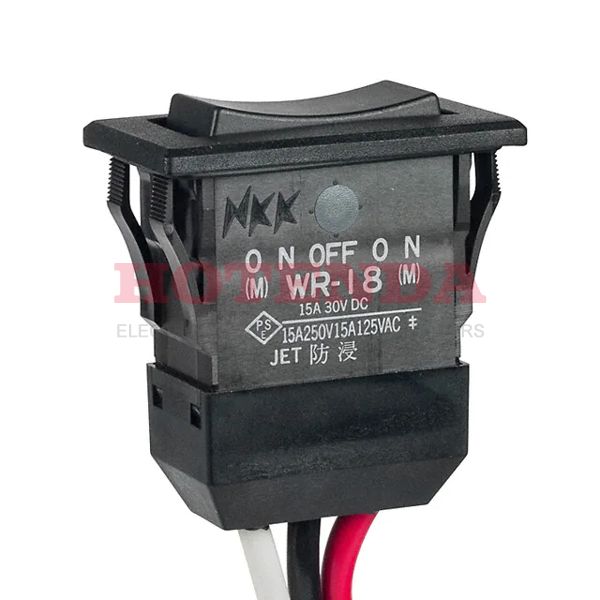

Description:SWITCH ROCKER SPDT 15A 125V

Case Package:SOT-23

Datasheet:WR18AL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Plating	Silver
Mount	Panel, Snap in
Mounting Type	Panel Mount, Snap-In
Housing Material	Polyamide
Actuator Material	POLYPHENYLENE OXIDE
Terminal Material	COPPER
Operating Temperature	-25°C~85°C
Packaging	Bulk
Published	2012
Series	WR
JESD-609 Code	e3
Feature	Epoxy Sealed Terminals
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Wire Leads
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Voltage - Rated DC	30V
Current Rating (Amps)	15A AC/DC
Orientation	Vertical
Ingress Protection	IP67 - Dust Tight, Waterproof
Current Rating	15A
Termination Style	Wire Leads
Voltage - Rated AC	125V
Body Breadth	24.003 mm
Actuator Type	Concave (Curved)
Circuit	SPDT
Switch Function	Mom-Off-Mom
Panel Cutout Dimensions	Rectangular - 34.20mm x 17.20mm
Contact Resistance	0.03mOhm
Insulation Resistance	200000000Ohm
Color - Actuator/Cap	Black
Electrical Life	10,000 Cycles
Throw Configuration	SPDT, SPST
Mechanical Life	30,000 Cycles
Switch Type	ROCKER SWITCH
Contact Current Rating	15A
Illumination Type	Illuminated
Contact (AC) Max Rating R Load	15A@250VAC
Contact Voltage(AC)-Max	250V
Actuator Marking	No Marking
Contact Function	(ON)-OFF-(ON)
Solderability	HAND
Actuator Angle	24 deg
Height	30.6mm
Length	41mm
Width	24mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	Dust Tight, IP67, Waterproof

WR18AL Product Details

The NKK Switches Rocker Switches WR18AL is a single-pole double-throw (SPDT) switch designed for use in a variety of applications. It is rated for 15A at 125V and is UL and CSA approved. It features a black plastic body with a white rocker actuator and a red LED indicator. The WR18AL is suitable for use in a variety of applications, including lighting, motor control, and power switching. It is also suitable for use in industrial, commercial, and residential applications. The WR18AL is designed for easy installation and is RoHS compliant. It is also available in a variety of colors and configurations.
