Name: PZU24B1,115
Brand: Nexperia USA Inc.
SKU: PZU24B1,115
Price: 0.03000 USD
Availability: InStock

new-10%

PZU24B1,115

Manufacturer part number:PZU24B1,115

Manufacturer:Nexperia USA Inc.

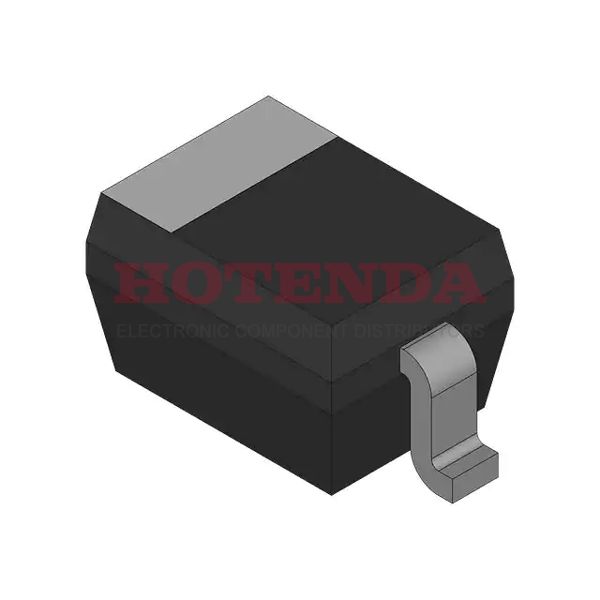

Description:ZENER DIODE 30Ohm ±2% 23.445V 50nA @ 19V -65°C~150°C 310mW 2 Terminations SC-90, SOD-323F

Case Package:SOT-23

Datasheet:PZU24B1,115 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~150°C
Packaging	Tape & Reel (TR)
Published	2018
Tolerance	±2%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.10.00.50
Max Power Dissipation	310mW
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	PZU24
Pin Count	2
Reference Standard	IEC-60134
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	30Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	50nA @ 19V
Power Dissipation	550mW
Voltage - Forward (Vf) (Max) @ If	1.1V @ 100mA
Max Reverse Leakage Current	50μA
Impedance-Max	30Ohm
Test Current	5mA
Reference Voltage	24V
Voltage - Zener (Nom) (Vz)	24V
Zener Voltage	23.445V
Voltage Tol-Max	2%
Voltage Tolerance	2%
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PZU24B1,115 Product Details

PZU24B1,115 Overview

This electrical device requires reverse leakage current of 50nA @ 19V.Tol is the maximum voltage that can be supplied (2%).Reverse leakage current reaches 50μA at its maximum.The maximum voltage - Zener (Nom) is reduced to 24V during operation.Zener single diode reaches 1.1V @ 100mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).
