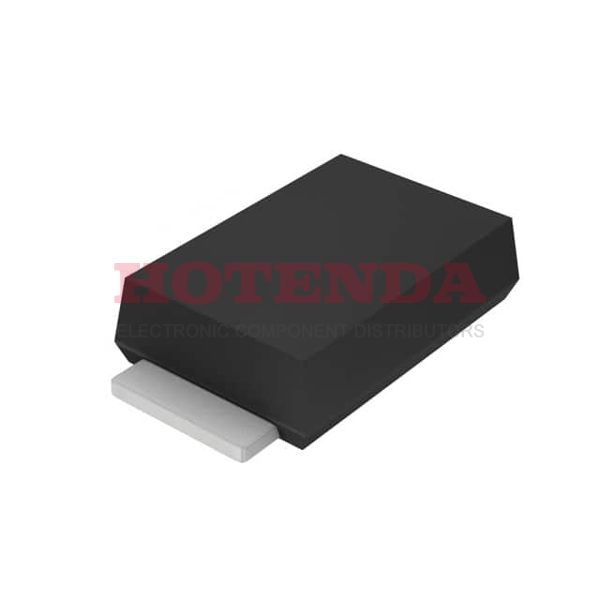

PMEG6030EP/8X

Name: PMEG6030EP/8X
Brand: Nexperia USA Inc.
SKU: PMEG6030EP/8X
Price: 0.48000 USD
Availability: InStock

new-10%

Manufacturer part number:PMEG6030EP/8X

Manufacturer:Nexperia USA Inc.

Description:PMEG6030EP/8X datasheet pdf and Diodes - Rectifiers - Single product details from Nexperia USA Inc. stock available on our website

Case Package:SOT-23

Datasheet:PMEG6030EP/8X Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mounting Type	Surface Mount
Package / Case	SOD-128
Surface Mount	YES
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2009
Series	Automotive, AEC-Q101
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	2
JESD-30 Code	R-PDSO-F2
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Power Dissipation-Max	0.625W
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	200μA @ 60V
Voltage - Forward (Vf) (Max) @ If	530mV @ 3A
Operating Temperature - Junction	150°C Max
Output Current-Max	3A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	3A
Number of Phases	1
Capacitance @ Vr, F	360pF @ 1V 1MHz
Non-rep Pk Forward Current-Max	50A
RoHS Status	ROHS3 Compliant
