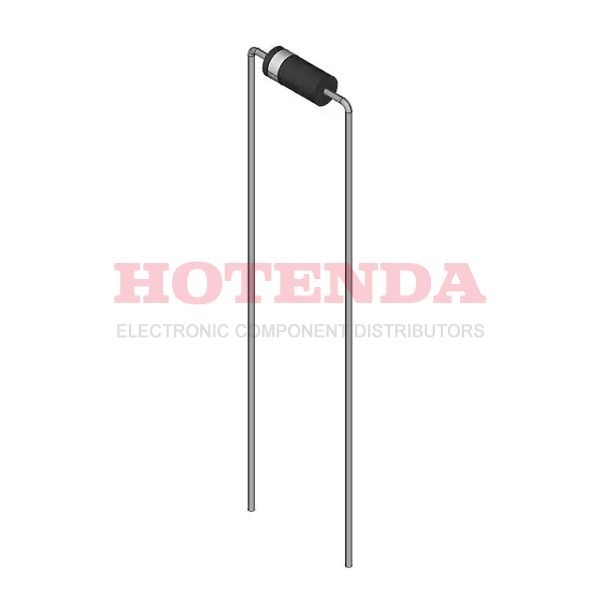

Name: NZX14A,133
Brand: Nexperia USA Inc.
SKU: NZX14A,133
Price: 0.02000 USD
Availability: InStock

new-10%

NZX14A,133

Manufacturer part number:NZX14A,133

Manufacturer:Nexperia USA Inc.

Description:ZENER DIODE 35Ohm ±2% 13.45V 50nA @ 9.8V -55°C~175°C 500mW 2 Terminations DO-204AH, DO-35, Axial

Case Package:SOT-23

Datasheet:NZX14A,133 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-55°C~175°C
Packaging	Tape & Box (TB)
Tolerance	±2%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.10.00.80
Max Power Dissipation	500mW
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	2
Reference Standard	IEC-60134
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	35Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	50nA @ 9.8V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	50nA
Impedance-Max	35Ohm
Test Current	5mA
Reference Voltage	13.45V
Voltage - Zener (Nom) (Vz)	14V
Zener Voltage	13.45V
Voltage Tol-Max	1.86%
Voltage Tolerance	2%
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

NZX14A,133 Product Details

NZX14A,133 Overview

It is necessary to supply this electrical device with a reverse leakage current of 50nA @ 9.8V.A voltage of 1.86% indicates the maximum voltage (Tol) that can be supplied.Reverse leakage current reaches a maximum of 50nA.In operation, the maximum voltage - Zener (Nom) is set to 14V.For the device to operate, the maximum forward voltage (Vf) 1.5V @ 200mA must be supplied.
