Name: BZX884-C68,315
Brand: Nexperia USA Inc.
SKU: BZX884-C68,315
Price: 0.47000 USD
Availability: InStock

new-10%

BZX884-C68,315

Manufacturer part number:BZX884-C68,315

Manufacturer:Nexperia USA Inc.

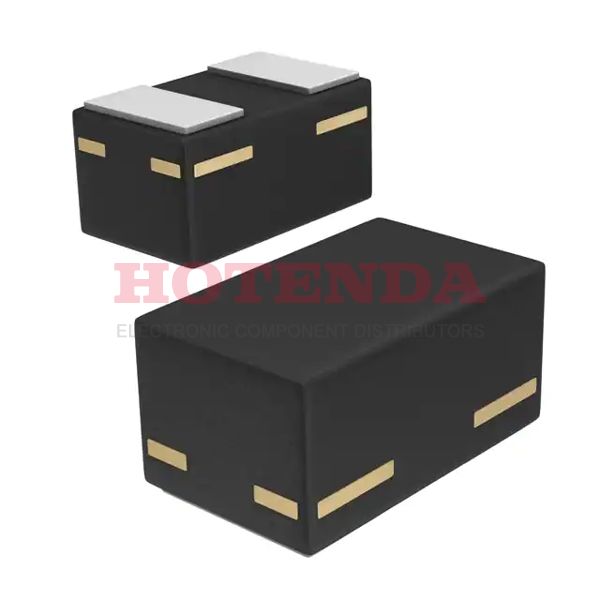

Description:ZENER DIODE 240Ohm ±5% 68V 50nA @ 47.6V -65°C~150°C 250mW 2 Terminations SOD-882

Case Package:SOT-23

Datasheet:BZX884-C68,315 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-882
Diode Element Material	SILICON
Operating Temperature	-65°C~150°C
Packaging	Tape & Reel (TR)
Published	2009
Tolerance	±5%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
HTS Code	8541.10.00.50
Max Power Dissipation	250mW
Terminal Position	BOTTOM
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	BZX884C68
Pin Count	2
JESD-30 Code	R-PBCC-N2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	240Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	50nA @ 47.6V
Power Dissipation	250mW
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Max Reverse Leakage Current	50nA
Impedance-Max	240Ohm
Test Current	2mA
Reference Voltage	68V
Zener Voltage	68V
Voltage Tol-Max	5%
Voltage Tolerance	5%
ESD Protection	Yes
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

BZX884-C68,315 Product Details

BZX884-C68,315 Overview

This electrical device requires reverse leakage current of 50nA @ 47.6V.Tol is the maximum voltage that can be supplied (5%).Reverse leakage current reaches 50nA at its maximum.Zener single diode reaches 900mV @ 10mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).
