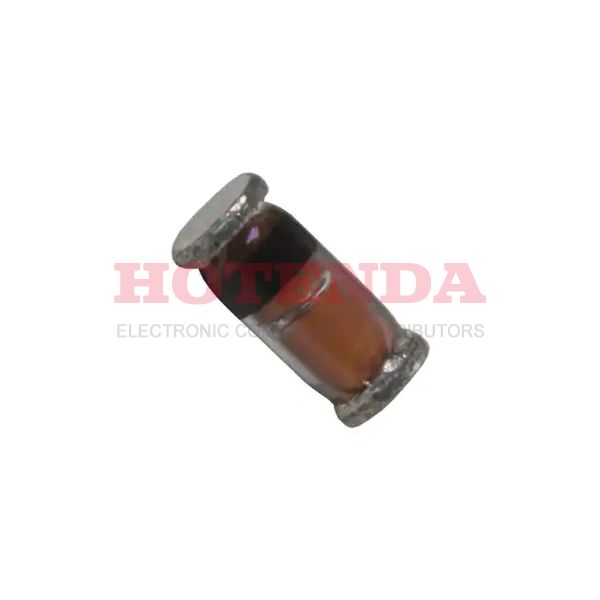

Name: BZV55-B36,115
Brand: Nexperia USA Inc.
SKU: BZV55-B36,115
Price: 0.28000 USD
Availability: InStock

new-10%

BZV55-B36,115

Manufacturer part number:BZV55-B36,115

Manufacturer:Nexperia USA Inc.

Description:ZENER DIODE 90Ohm ±2% 36V 50nA @ 700mV -65°C~200°C 400mW 2 Terminations DO-213AC, MINI-MELF, SOD-80

Case Package:SOT-23

Datasheet:BZV55-B36,115 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~200°C
Packaging	Tape & Reel (TR)
Published	2010
Tolerance	±2%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
HTS Code	8541.10.00.50
Max Power Dissipation	400mW
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	90Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	50nA @ 700mV
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Case Connection	ISOLATED
Max Reverse Leakage Current	50nA
Impedance-Max	90Ohm
Test Current	2mA
Reference Voltage	36V
Zener Voltage	36V
Voltage Tol-Max	2%
Voltage Tolerance	2%
ESD Protection	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

BZV55-B36,115 Product Details

BZV55-B36,115 Overview

An electrical device such as this requires reverse leakage current of 50nA @ 700mV.A voltage of 2% is considered to be the maximum that can be output (Tol).A maximum reverse leakage current is reached at 50nA.As soon as the maximum voltage - Forward (Vf) is supplied, it reaches 900mV @ 10mA V.
