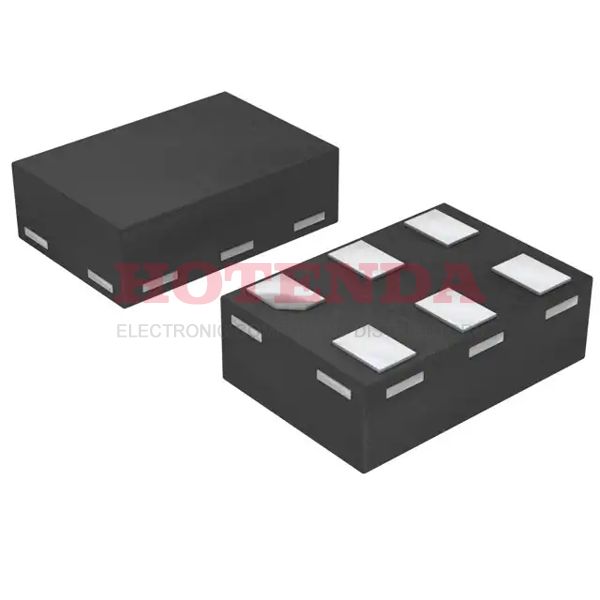

74LVC2G06GM,132 Overview
The part can be shipped overseas conveniently because it is packaged in 6-XFDFN. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of Inverter. The part must have a voltage of 1.65V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is - 32mA. This is part of the 74LVC series. In total, there are 6 terminations. 2 functions in the part enhance the user experience significantly. The chip is part of the LVC/LCX/Z family. Use 74LVC2G06 to search for device variants. There are 6 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 6 pins can be found in the datasheets. When the part is quiescent, 40μA current flows through it. The operation uses 2 elements in total. In standby mode, the maximum current is 4μA. Open Drain is its feature.
74LVC2G06GM,132 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 40μA
74LVC2G06GM,132 Applications
There are a lot of Nexperia USA Inc.
74LVC2G06GM,132 Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
