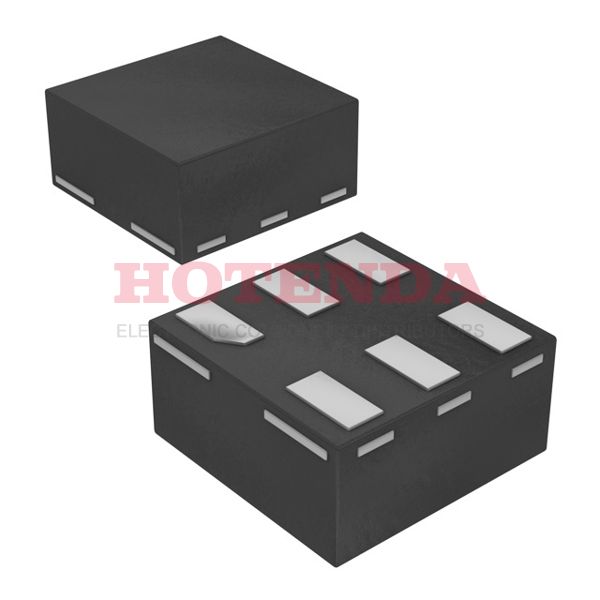

74LVC2G04GS-Q100H Overview
The part comes in 6-XFDFN packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A Inverter logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 1.65V~5.5V. Around -40°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 32mA 32mA. This item is from the Automotive, AEC-Q100, 74LVC series. Circuits number 2 make up this device. Standing by mode draws 4μA watts of current.
74LVC2G04GS-Q100H Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
74LVC2G04GS-Q100H Applications
There are a lot of Nexperia USA Inc.
74LVC2G04GS-Q100H Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
