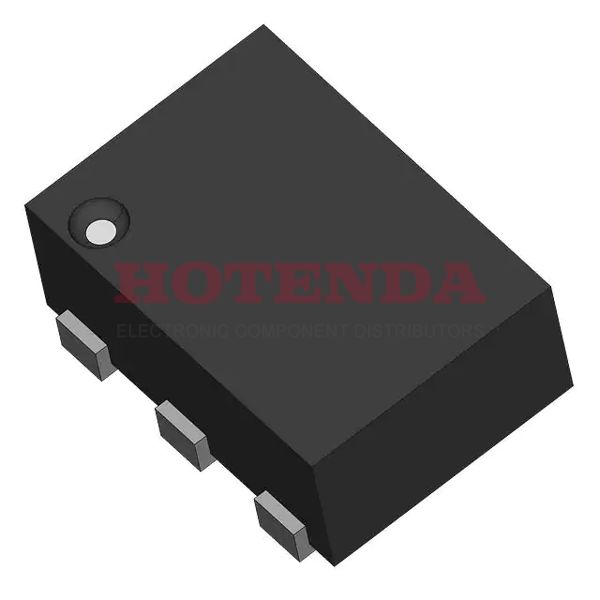

74LVC1G10GS,132 Overview
As the part is packed in 6-XFDFN, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the NAND Gate principle. Ensure the part's full functionality by setting the voltage to 1.65V~5.5V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. 32mA 32mA is the output current's high and low states. 74LVC is its series number. Total terminations are 6. Users will benefit significantly from 1 functions in this part. There is a chip like this in LVC/LCX/Z. Trying searching with 74LVC1G10 will yield device variants. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 6 pin functions are available upon request. Inputs for the part are set to 3. Quiescent parts carry 200μA current. When 5.5V is reached, the maximum supply voltage (Vsup) is reached. This device includes 1 outputs. Standby current is 4μA.
74LVC1G10GS,132 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 200μA
74LVC1G10GS,132 Applications
There are a lot of Nexperia USA Inc.
74LVC1G10GS,132 Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
