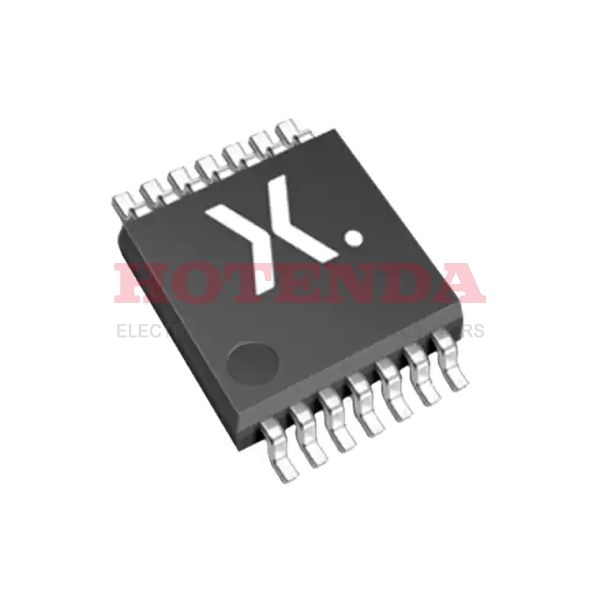

74LVC04APW,112 Overview
Packed in 14-TSSOP (0.173, 4.40mm Width), the part is convenient for shipping overseas. Advanced packaging method Tube is used to provide high reliability. It works based on the Inverter logic principle. To ensure the part's full function, a voltage of 1.2V~3.6V is needed. Extended operating temperature around -40°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 24mA 24mA. It comes from the 74LVC series. There are 14 terminations totally. The part has 6 functions that significantly boost the user experience. It represents the LVC/LCX/Z product family. If you are looking for device variants, try search with 74LVC04. 14 pins are injected into the part body. The part supports 1 inputs. This device is composed of 6 circuits. It requires a minimal voltage of 1.2V to supply the device. The maximum current in standby mode is 40μA.
74LVC04APW,112 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
74LVC04APW,112 Applications
There are a lot of Nexperia USA Inc.
74LVC04APW,112 Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
