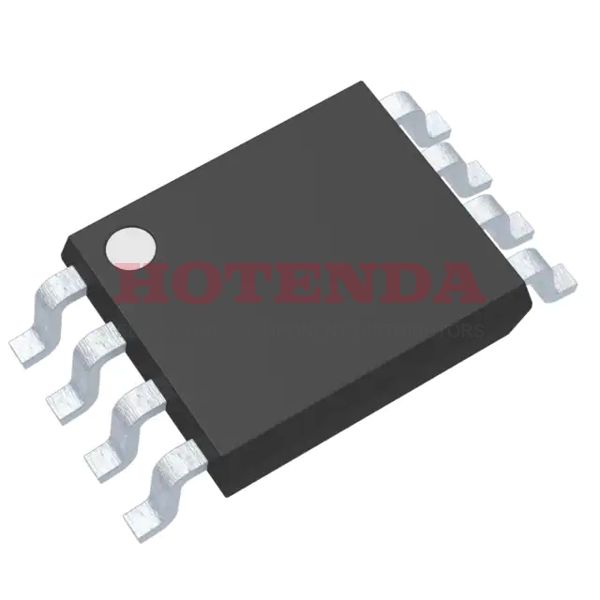

74HC3G04DC-Q100H Overview
The part is convenient to ship overseas because it is packed in a 8-VFSOP (0.091, 2.30mm Width). The advanced packaging method Tape & Reel (TR) provides high reliability. A Inverter logic principle governs its operation. Voltage 2V~6V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~125°C. Mounted in Surface Mount. Output current is 5.2mA 5.2mA in the high and low states. 74HC is the series it belongs to. The total number of terminations is 8. There are 3 functions that significantly improve the user experience. As part of HC/UH, this chip is used. Try searching with 74HC3G04 to find device variants. A total of 8 pins are injected into the body of the part. Datasheets for functions of 8 pins are available. The device consists of 3 circuits. To supply the device, it requires a voltage of 2V. Vsup reaches its maximum value at 6V. There is a specified operating supply voltage for the chip of 5V volts. In standby mode, there is 1μA maximum current.
74HC3G04DC-Q100H Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
HC/UH Family
74HC3G04DC-Q100H Applications
There are a lot of Nexperia USA Inc.
74HC3G04DC-Q100H Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
