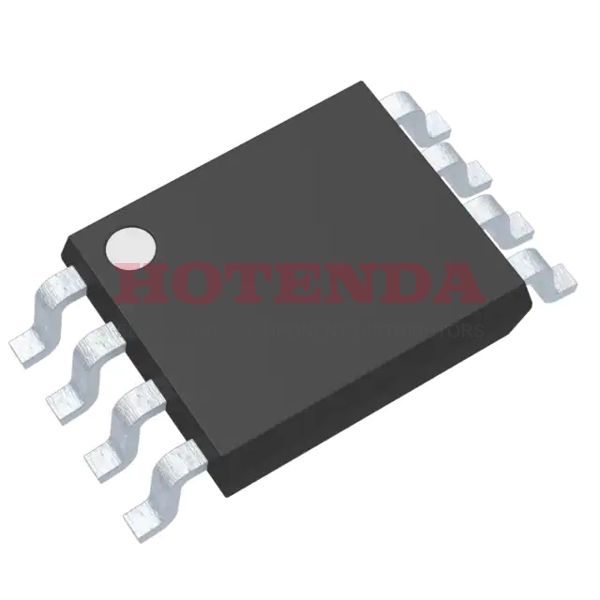

74HC2G00DC-Q100H Overview
This part is conveniently packaged in 8-VFSOP (0.091, 2.30mm Width), making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). NAND Gate logic governs its operation. Voltage 2V~6V ensures the part's full functionality. Operation at a temperature around -40°C~125°C. A Surface Mount mount is used for this part. Current output is 5.2mA 5.2mA in both the high and low states. The number 74HC refers to it. Search with 74HC2G00 if you are looking for device variants. It is widely used in a variety of applications due to its Surface Mount mounting. As of 2, the part supports 2 inputs. Parts that are quiescent have 20μA current flowing through them. 2 circuits are used in this device. When the standby mode is activated, there is 20μA current flowing. Suppliers offer package 8-VSSOP. When the device is operating in a temperature environment higher than that of 125°C, it should be turned off. It is estimated that the minimal operating temperature of the part is -40°C. It is recommended that users do not supply the device with voltages greater than 6V under normalcircumstances. The lowest voltage the part should receive is 2V.
74HC2G00DC-Q100H Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
Quiescent Current: 20μA
74HC2G00DC-Q100H Applications
There are a lot of Nexperia USA Inc.
74HC2G00DC-Q100H Gates and Inverters applications.
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
