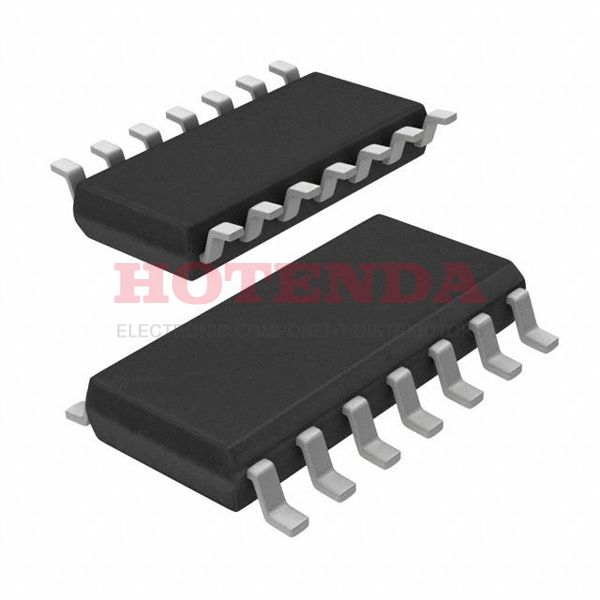

74HC11D,653 Overview
The part can be shipped overseas conveniently because it is packaged in 14-SOIC (0.154, 3.90mm Width). In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of AND Gate. The part must have a voltage of 2V~6V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 5.2mA 5.2mA. This is part of the 74HC series. In total, there are 14 terminations. 3 functions in the part enhance the user experience significantly. The chip is part of the HC/UH family. Use 74HC11 to search for device variants. There are 14 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 14 pins can be found in the datasheets. When the part is quiescent, 2μA current flows through it. Devices require a minimum voltage of 2V. As soon as Vsup reaches 6V, the maximal supply voltage (Vsup) is reached. 25mA is the device's output current rating. The device has 1 outputs. It is specified that the operating supply voltage for the chip will be 5V volts. A logical operation through a gate of 3.
74HC11D,653 Features
AND Gate Logic Type
Operating Temperature: -40°C~125°C
HC/UH Family
Quiescent Current: 2μA
Output Current: 25mA
3 Gates
