74AUP1T00GWH Overview

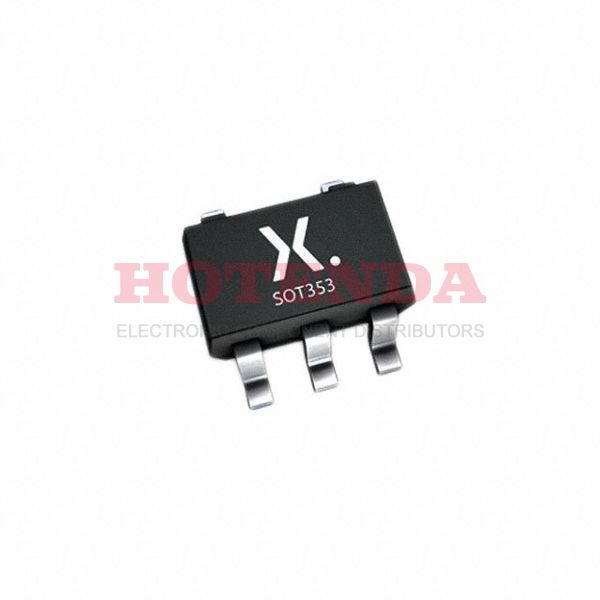

The part comes in 5-TSSOP, SC-70-5, SOT-353 packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A NAND Gate logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 2.3V~3.6V. Around -40°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 4mA 4mA. This item is from the 74AUP series. Inputs for this part are 2. Circuits number 1 make up this device. Standing by mode draws 1.2μA watts of current. The feature count is 0.
74AUP1T00GWH Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
74AUP1T00GWH Applications
There are a lot of Nexperia USA Inc.
74AUP1T00GWH Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
