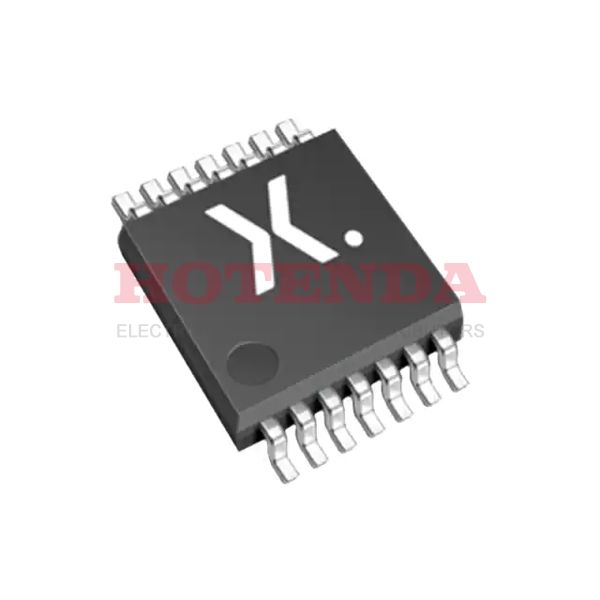

74AHC86PW,118 Overview
The part comes in 14-TSSOP (0.173, 4.40mm Width) packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A XOR (Exclusive OR) logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 2V~5.5V. Around -40°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 8mA 8mA. This item is from the 74AHC series. In total, 14 terminations have occurred. This part is equipped with 4 functions that will greatly enhance the user's experience. It is part of the AHC/VHC/H/U/V family of chips. 74AHC86 can help you find device variants. Into the part body are injected 14 pins. Inputs for this part are 2. Circuits number 4 make up this device. In order for the device to work, a minimum voltage of 2V is required. Upon reaching 5.5V, the highest supply voltage (Vsup) is reached. Standing by mode draws 2μA watts of current.
74AHC86PW,118 Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~125°C
AHC/VHC/H/U/V Family
74AHC86PW,118 Applications
There are a lot of Nexperia USA Inc.
74AHC86PW,118 Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
