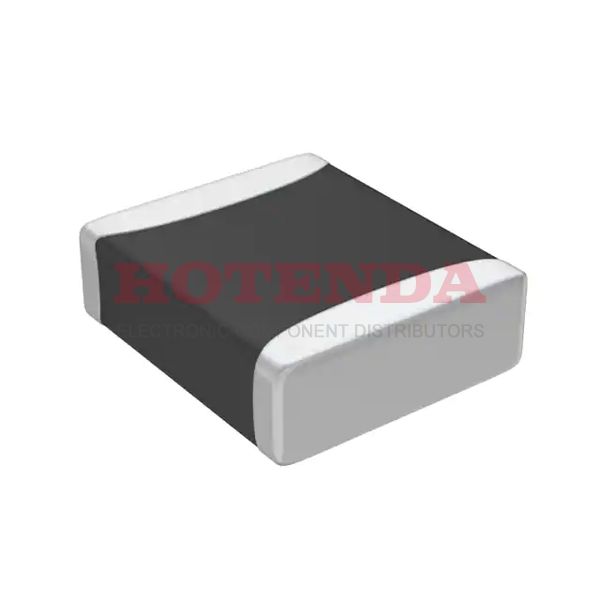

Name: GRM55DR72J154KW01L
Brand: Murata Electronics
SKU: GRM55DR72J154KW01L
Price: 1.39000 USD
Availability: InStock

new-10%

GRM55DR72J154KW01L

Manufacturer part number:GRM55DR72J154KW01L

Manufacturer:Murata Electronics

Description:GRM55DR72J154KW01L datasheet pdf and Ceramic Capacitors product details from Murata Electronics stock available on our website

Case Package:SOT-23

Datasheet:GRM55DR72J154KW01L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	2220 (5750 Metric)
Terminal Shape	WRAPAROUND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	GRM
Size / Dimension	0.224Lx0.197W 5.70mmx5.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
HTS Code	8532.24.00.20
Capacitance	0.15μF
Voltage - Rated DC	630V
Packing Method	TR, EMBOSSED, 7 INCH
Depth	5mm
Case Code (Metric)	5750
Case Code (Imperial)	2220
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	X7R
Multilayer	Yes
Voltage	630V
Height	2mm
Length	5.7mm
Thickness (Max)	0.087 2.20mm
Thickness	2.2098mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

GRM55DR72J154KW01L Product Details

GRM55DR72J154KW01L Overview

This device's program size/dimension is 0.224Lx0.197W 5.70mmx5.00mm.Its coefficient is X7R and determines the change in resistance per degree of temperature for a substance.With the voltage 630V, it is capable of operating.
