GRM32ER61C226KE20L

  • GRM32ER61C226KE20L
  • GRM32ER61C226KE20L

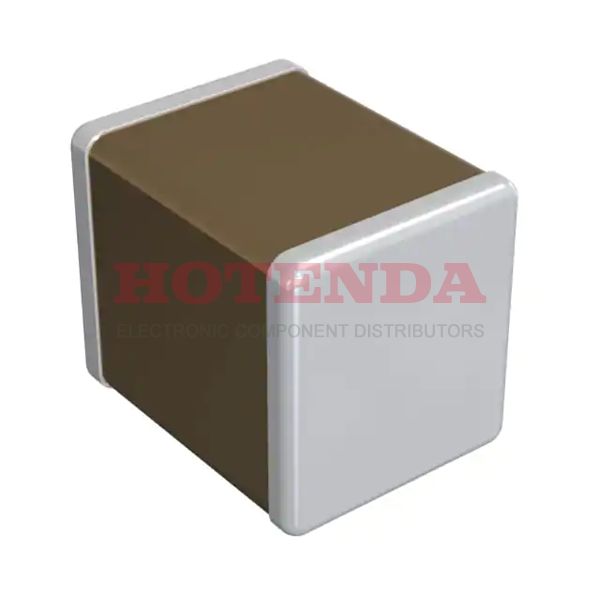

GRM32ER61C226KE20L

GRM32ER61C226KE20L

Murata Electronics

GRM32ER61C226KE20L datasheet pdf and Ceramic Capacitors product details from Murata Electronics stock available on our website

SOT-23

GRM32ER61C226KE20L Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Lifecycle Status NRND (Last Updated: 3 weeks ago)
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1210 (3225 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material Ceramic
Operating Temperature -55°C~85°C
Packaging Tape & Reel (TR)
Series GRM
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X5R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
Capacitance 22μF
Voltage - Rated DC 16V
Packing Method TR, EMBOSSED, 7 INCH
Depth 2.5mm
Case Code (Metric) 3225
Case Code (Imperial) 1210
Temperature Characteristics Code X5R
Multilayer Yes
Insulation Resistance 7.66MOhm
Voltage 16V
Height 2.5mm
Thickness (Max) 0.106 2.70mm
Thickness 2.6924mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
GRM32ER61C226KE20L Product Details

GRM32ER61C226KE20L Overview


Consequently, the program has size/dimension 0.126Lx0.098W 3.20mmx2.50mm.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with X5R being the highest temperature coefficient.With a voltage of 16V, it can operate.In this capacitor, the insulation resistance is 7.66MOhm (the resistance between two electrical conductors or two systems of conductors separated by an insulating material).

GRM32ER61C226KE20L Features


a size/dimension of 0.126Lx0.098W 3.20mmx2.50mm
with X5R being the highest temperature coefficient
with the voltage - Rated DC of 16V

GRM32ER61C226KE20L Applications


There are a lot of Murata Electronics GRM32ER61C226KE20L applications of ceramic capacitors.

  • Mobile devices
  • Power supply circuit
  • General electronic equipment
  • Servers, PCs, tablets
