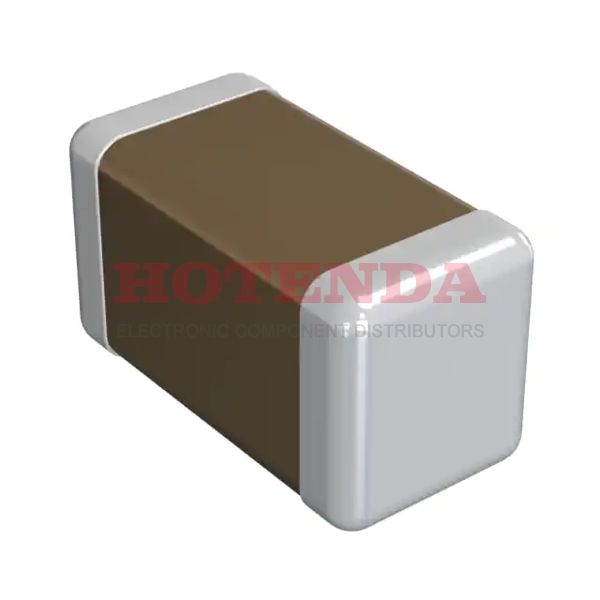

Name: GJM1555C1H2R9BB01D
Brand: Murata Electronics
SKU: GJM1555C1H2R9BB01D
Price: 0.03000 USD
Availability: InStock

new-10%

GJM1555C1H2R9BB01D

Manufacturer part number:GJM1555C1H2R9BB01D

Manufacturer:Murata Electronics

Description:GJM1555C1H2R9BB01D datasheet pdf and Ceramic Capacitors product details from Murata Electronics stock available on our website

Case Package:SOT-23

Datasheet:GJM1555C1H2R9BB01D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	IN PRODUCTION (Last Updated: 3 weeks ago)
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	GJM
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±0.1pF
JESD-609 Code	e3
Feature	High Q, Low Loss
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency
HTS Code	8532.24.00.20
Capacitance	2.9pF
Voltage - Rated DC	50V
Packing Method	TR, PAPER, 7 INCH
Depth	500μm
Case Code (Metric)	1005
Case Code (Imperial)	0402
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Height	500μm
Length	1mm
Width	0.5mm
Thickness (Max)	0.022 0.55mm
Thickness	558.8μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

GJM1555C1H2R9BB01D Product Details

GJM1555C1H2R9BB01D Overview

Consequently, the program has size/dimension 0.039Lx0.020W 1.00mmx0.50mm.Temperature coefficient of resistance consists of the change in electrical resistance of a substance with respect to each degree change in temperature, and it is C0G NP0.The voltage - Rated DC of 50V allows it to function.
