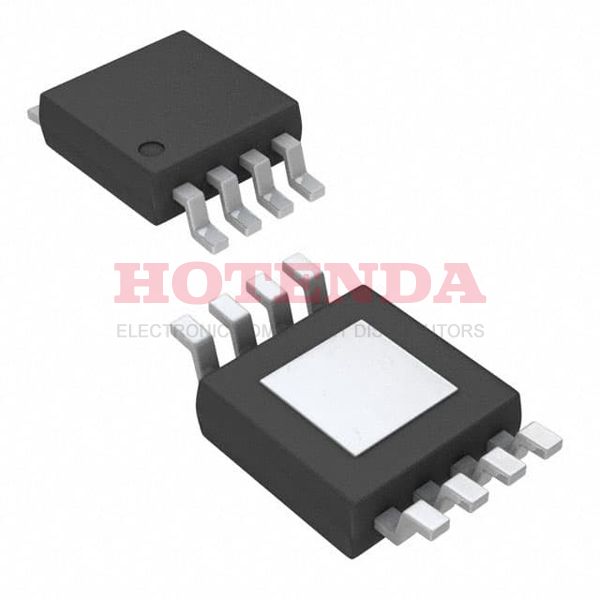

Name: MP2380DN-LF
Brand: Monolithic Power Systems Inc.
SKU: MP2380DN-LF
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width) Exposed Pad
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2008
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
JESD-30 Code	R-PDSO-G8
Function	Step-Down
Number of Outputs	1
Output Voltage	800mV
Output Type	Adjustable
Operating Supply Voltage	21V
Voltage - Input (Min)	4.5V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	5A
Max Output Voltage	18.9V
Voltage - Output (Min/Fixed)	0.8V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	600kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Min Output Voltage	800mV
Length	4.9mm
Width	3.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MP2380DN-LF Product Details

MP2380DN-LF Overview

For optimal performance, this voltage regulator uses the Tube package. Throughout this voltage regulator, there are 8 terminations. As this regulator voltage is equipped with an analog IC of the type SWITCHING REGULATOR, it is a SWITCHING REGULATOR-type voltage regulator. For space-saving purposes, this voltage regulator is available in the 8-SOIC (0.154, 3.90mm Width) Exposed Pad package. There are 1 outputs configured on the voltage regulator. DC DC switching regulators like this one generate Adjustable outputs on their output pins to handle the power management. As the name implies, this voltage regulator 12v is designed for mounting on a Surface Mount bracket. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~85°C TA. This voltage regulator 12v reaches a switching frequency of 600kHz. The voltage regulator can be operated with a voltage as low as 4.5V as an input voltage. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 0.8V. The output current of 5A makes dc to dc voltage regulator feature maximum design flexibility. A regulator with this 260 peak reflow temperature is essentially indestructible. For operation, voltage regulator provides a nominal input voltage of 12V. The voltage DC DC switching regulator can provide is up to 800mV volts. The output voltage for this switching regulator should be kept at 800mV at least. Using this voltage regulator 12v, you will be able to get the maximum output voltage of 18.9V. This DC-DC switching regulator operates from a supply voltage of 21V.
