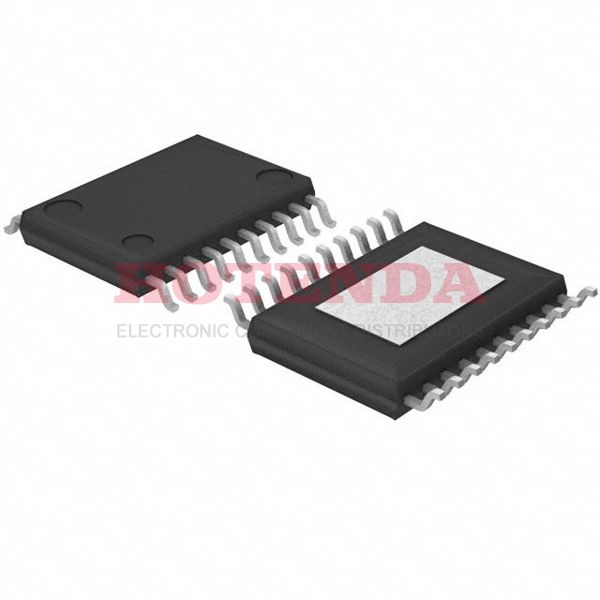

MP2362DF-LF Overview
For optimal performance, this voltage regulator makes use of the Tube package. There are 20 terminations in this voltage regulator. This regulator voltage is equipped with a type of analog integrated circuit that is called a DUAL SWITCHING CONTROLLER voltage regulator. Space savings are achieved by placing this voltage regulator in the 20-TSSOP (0.173, 4.40mm Width) Exposed Pad package. There are 2 outputs configured on the voltage regulator. On the output pins of this DC DC switching regulator, there is a Adjustable output generated. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. This voltage regulator 12v should operate at a temperature of -40°C~85°C TA when operating. DC-DC switching regulators reach 380kHz switching frequencies. The regulator is capable of operating with a dc to dc voltage regulator's minimum input voltage of 4.75V. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 1.22V. This voltage regulator 12v offers maximum design flexibility with an output current of 2A. The peak reflow temperature of this regulator amounts to 260 to be essentially indestructible. To meet the switching regulator operation requirements, a nominal input voltage of 12V is provided. The voltage DC DC switching regulator can produce is 16V volts. The output voltage for this switching regulator should be kept at 1.22V at least. As a result, it is able to provide adjusting voltage regulator a maximum output voltage of 16V. With a supply voltage of 23V, this harley voltage regulator works.
MP2362DF-LF Features
2 outputs
Peak reflow temperature (Cel) of 260
Operating supply voltage of 23V
MP2362DF-LF Applications
There are a lot of Monolithic Power Systems Inc. MP2362DF-LF Voltage Regulators applications.
- Printing
- Servo drive system
- Product burn-in
- Lathes
- Network technology
- Series voltage regulation circuits
- Pipe bending machines
- Drilling machines
- Geothermal power
- Electric water heaters
