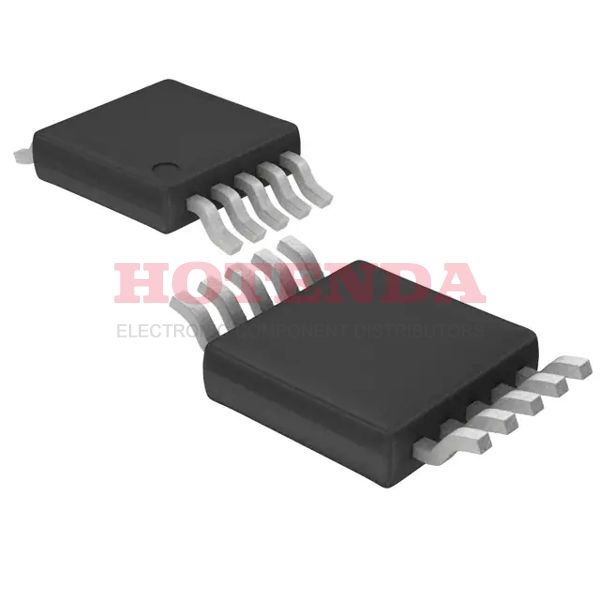

Name: MP2351DK-LF-P
Brand: Monolithic Power Systems Inc.
SKU: MP2351DK-LF-P
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Supplier Device Package	10-MSOP
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	23V
Output Type	Adjustable
Voltage - Input (Min)	4.75V
Output Configuration	Positive
Current - Output	1.5A
Max Output Voltage	16V
Voltage - Output (Min/Fixed)	1.23V
Topology	Buck
Min Input Voltage	4.75V
Frequency - Switching	1.4MHz
Max Input Voltage	23V
Synchronous Rectifier	Yes
Min Output Voltage	1.23V
Voltage - Output (Max)	16V
RoHS Status	ROHS3 Compliant

MP2351DK-LF-P Product Details

MP2351DK-LF-P Overview

For optimal performance, this voltage regulator makes use of the Tape & Reel (TR) package. In order to save space, this harley voltage regulator is available in the 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) package. The voltage regulator is configured with 1 outputs. Adjusting voltage regulator's output pins generate Adjustable output. This switching regulator is designed to fit the Surface Mount mounting system. The operating temperature should be kept at -40°C~85°C TA when the voltage regulator 12v is in operation. A DC-DC switching regulator of this type operates at a switching frequency of 1.4MHz. A dc to dc voltage regulator's minimum input voltage of 4.75V is required for this voltage regulator to operate. The adjusting voltage regulator's output voltage (Min/Fixed) is 1.23V. As a result of the 1.5A output current, voltage regulator offers maximum flexibility in design. The maximum input voltage of voltage regulator is 23V. For this switching regulator, we recommend keeping the output voltage at at least 1.23V volts. The maximal output voltage of 16V allows DC DC switching regulator to be operated easily. DC DC switching regulator offers a maximum output voltage of 16V as its maximum output voltage. 85°C allows switching regulator's stable operation at a high limit of maximum operating temperature. Reliability is ensured at minimum DC DC switching regulator's operating temperatures of -40°C. A dc to dc voltage regulator's minimum input voltage of 4.75V is supported by the voltage regulator. The DC-DC switching regulator is designed to operate at its maximum input voltage.
