Name: MP2019GN
Brand: Monolithic Power Systems Inc.
SKU: MP2019GN
Availability: InStock

new-10%

MP2019GN

Manufacturer part number:MP2019GN

Manufacturer:Monolithic Power Systems Inc.

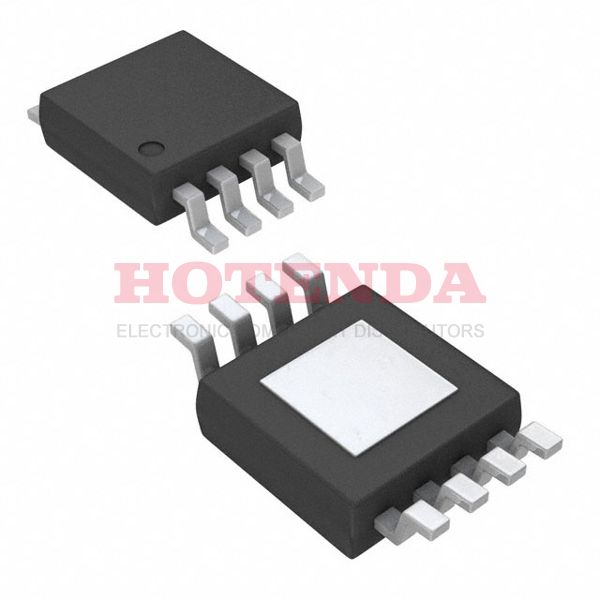

Description:Enable, Power Good Adjustable PMIC 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Case Package:SOT-23

Datasheet:MP2019GN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width) Exposed Pad
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Published	2017
Part Status	Active
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
ECCN Code	EAR99
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage - Input (Max)	40V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	300mA
Control Features	Enable, Power Good
Voltage - Output (Min/Fixed)	1.2V
Number of Regulators	1
Protection Features	Over Temperature, Short Circuit
Current - Quiescent (Iq)	95μA
Voltage Dropout (Max)	0.55V @ 150mA
PSRR	45dB (1kHz)
Voltage - Output (Max)	15V
RoHS Status	ROHS3 Compliant

MP2019GN Product Details

MP2019GN Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in 8-SOIC (0.154, 3.90mm Width) Exposed Pad case. Adjustable is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C TA degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 300mA from this regulator IC.
