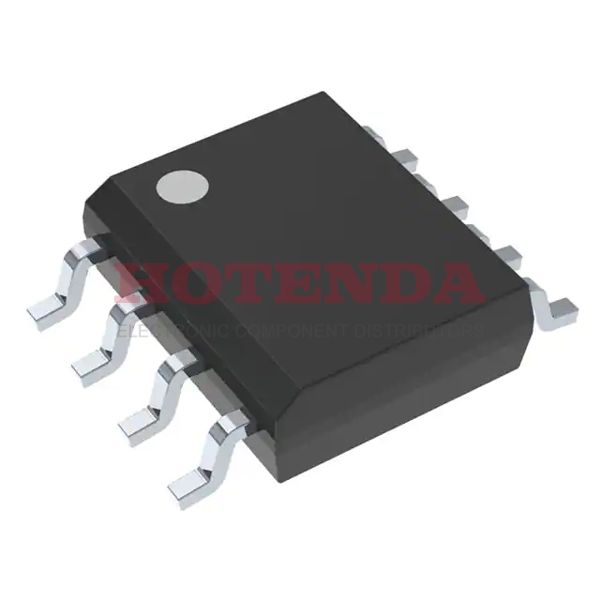

MP157GS Overview
In the package 8-SOIC (0.154, 3.90mm Width) , the ac to dc converter is embedded.The AC/DC power converter Tube is available for this product.Surface Mount is mounted in the way of this AC/DC converter.It is necessary to operate the ac dc converter at a temperature of -40°C~125°C TJ °C in order for it to perform properly.Analog ICs of type SWITCHING REGULATOR are used in this AC DC converter.Supply voltage (Vcc/Vdd) does not need to exceed 4.45V~4.6V .As a result, it has had 8 terminations.Approximately 8 pins are present on the ac/dc converter.Surface Mount is the recommended mounting method for the ac dc converters.The number of outputs to run is 1 .Current output is set to 360mA .An input voltage of 500V is available for powering the AC to DC converter.There is 6W output power generated by a coverter.The interface IC conducts when the supply voltage is 6.5V .Using the AC to DC power converter with 6W maximum output power is possible.
MP157GS Features
Packaged with 8-SOIC (0.154, 3.90mm Width)
With 8 pins
Output Current at 360mA
Operating Supply Voltage at the range of 6.5V
MP157GS Applications
There are a lot of Monolithic Power Systems Inc. MP157GS AC DC Converters applications.
- Replacements for bulky plug-in transformers
- Set-top boxes
- Automotive Telematics
- Switching AC-DC Adapter
- RCC SMPS
- AC?DC USB chargers for Cell Phones
- Off--line Battery Charger
- Consumer electronics
- Portable audio
- Set -Top Box (STB) Power Supply
