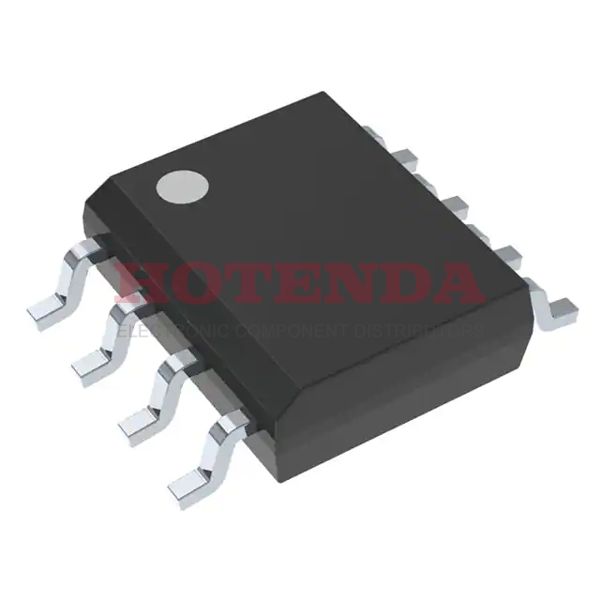

Name: MP1493DS-LF
Brand: Monolithic Power Systems Inc.
SKU: MP1493DS-LF
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2011
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	16V
Output Voltage	13V
Output Type	Adjustable
Voltage - Input (Min)	4.2V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	3A
Output Power	1.39W
Max Output Voltage	13V
Voltage - Output (Min/Fixed)	0.805V
Topology	Buck
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Min Output Voltage	805mV
Switching Frequency	300kHz
Length	4.9mm
Width	3.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MP1493DS-LF Product Details

MP1493DS-LF Overview

Using the Tube package, this voltage regulator optimizes the performance of the voltage regulator 12v. A voltage regulator consists of 8 terminations. A SWITCHING REGULATOR type of analog IC is equipped with this regulator voltage, which is the type of analog IC that is used in it. Space savings are achieved by placing this voltage regulator in the 8-SOIC (0.154, 3.90mm Width) package. The voltage regulator 12v has 1 outputs. There are output pins on this DC DC switching regulator that generate Adjustable output. Switching regulators like this one can be mounted on the Surface Mount mounting system. Voltage regulators should be operated at -40°C~85°C TA temperature while operating. There is no dc to dc voltage regulator's minimum input voltage requirement for this regulator. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 0.805V. DC DC switching regulator's 3A output current allows for maximum design flexibility. Voltage regulator's input voltage can reach 16V. The peak reflow temperature of this regulator amounts to 260 to be essentially indestructible. As a result of DC DC switching regulator's design, it is designed to provide an input voltage of 12V for the purposes of operation. At 13V volts, voltage regulator can provide voltage. During switching regulator operation, 8 pins are used. Ideally this switch regulator should have an output voltage of about 805mV at the very least. As a result, it is able to provide adjusting voltage regulator a maximum output voltage of 13V. Using 300kHz as the adjusting voltage regulator's switching frequency can improve reliability.
