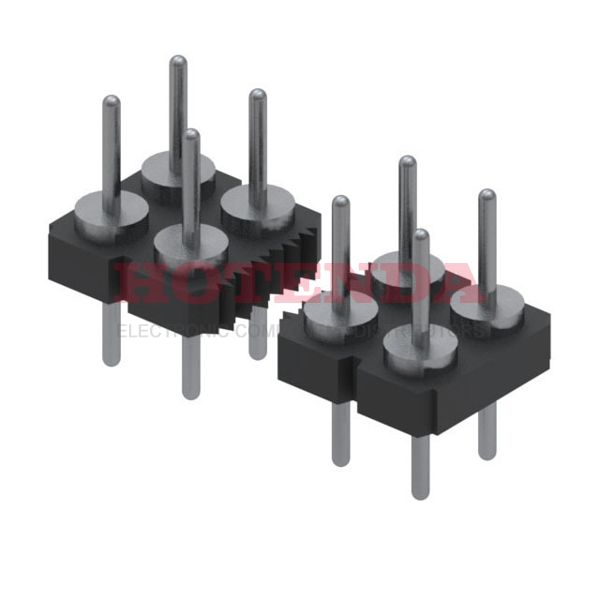

Name: 435-90-220-00-160000
Brand: Mill-Max Manufacturing Corp.
SKU: 435-90-220-00-160000
Price: 13.54000 USD
Availability: InStock

new

435-90-220-00-160000

Manufacturer part number:435-90-220-00-160000

Manufacturer:Mill-Max Manufacturing Corp.

Description:435 Series 2-Row Header Solder Brass Alloy Bulk Through Hole Tin-Lead Polycyclohexylenedimethylene Terephthalate (PCT) 20-Position Board to Board 0.050 1.27mm Height

Case Package:SOT-23

Datasheet:435-90-220-00-160000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Brass Alloy
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Packaging	Bulk
Series	435
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	20
Number of Rows	2
Additional Feature	LOW PROFILE
HTS Code	8536.90.40.00
Fastening Type	Push-Pull
Contact Finish - Mating	Tin-Lead
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Insulation Height	0.050 1.27mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.104 2.64mm
Shrouding	Unshrouded
Contact Length - Mating	0.125 3.18mm
Overall Contact Length	0.299 7.60mm
Contact Finish Thickness - Mating	200.0μin 5.08μm
Contact Finish Thickness - Post	200.0μin 5.08μm
RoHS Status	Non-RoHS Compliant

435-90-220-00-160000 Product Details

435-90-220-00-160000 Overview

Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the 435 Series.Other features include LOW PROFILE, to name just a few.
