JAN1N4568AUR-1

  • JAN1N4568AUR-1 - ZENER DIODE 200Ohm ±5% 6.4V 2μA @ 3V -65°C~175°C 2 Terminations DO-213AA (Glass)
  • JAN1N4568AUR-1 - ZENER DIODE 200Ohm ±5% 6.4V 2μA @ 3V -65°C~175°C 2 Terminations DO-213AA (Glass)

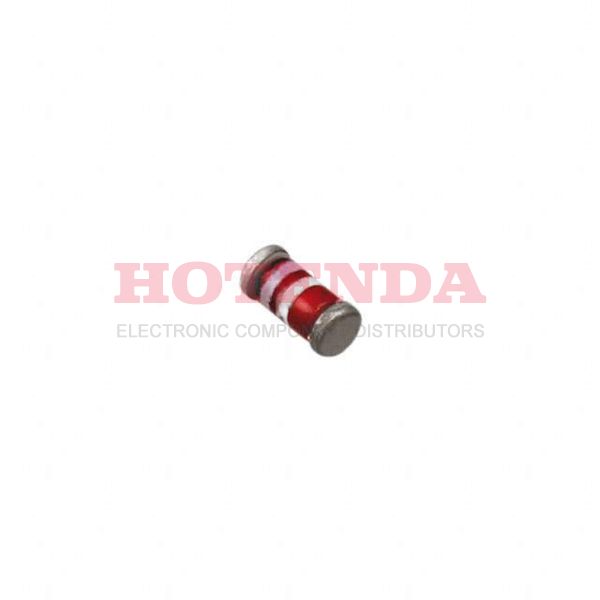

JAN1N4568AUR-1

JAN1N4568AUR-1

Microsemi Corporation

ZENER DIODE 200Ohm ±5% 6.4V 2μA @ 3V -65°C~175°C 2 Terminations DO-213AA (Glass)

SOT-23

JAN1N4568AUR-1 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 30 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-213AA (Glass)
Number of Pins 2
Diode Element Material SILICON
Operating Temperature-65°C~175°C
PackagingBulk
Published 1999
Tolerance ±5%
JESD-609 Code e0
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Additional FeatureMETALLURGICALLY BONDED
HTS Code8541.10.00.50
Terminal Position END
Terminal FormWRAP AROUND
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count2
Qualification StatusQualified
Number of Elements 1
Element ConfigurationSingle
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 2μA @ 3V
Power Dissipation500mW
Case Connection ISOLATED
Impedance-Max 200Ohm
Test Current 500μA
Zener Voltage 6.4V
Voltage Tolerance5%
RoHS StatusNon-RoHS Compliant
In-Stock:625 items

Pricing & Ordering

QuantityUnit PriceExt. Price
100$16.26900$1626.9

JAN1N4568AUR-1 Product Details

JAN1N4568AUR-1 Overview


To supply this electrical device, reverse leakage current of 2μA @ 3V is required.

JAN1N4568AUR-1 Features


reverse leakage current of 2μA @ 3V
2μA @ 3V is the maximum voltage (Tol)


JAN1N4568AUR-1 Applications


There are a lot of Microsemi Corporation
JAN1N4568AUR-1 applications of zener single diodes.
