Name: CDLL5541A
Brand: Microsemi Corporation
SKU: CDLL5541A
Price: 6.23000 USD
Availability: InStock

new-10%

CDLL5541A

Manufacturer part number:CDLL5541A

Manufacturer:Microsemi Corporation

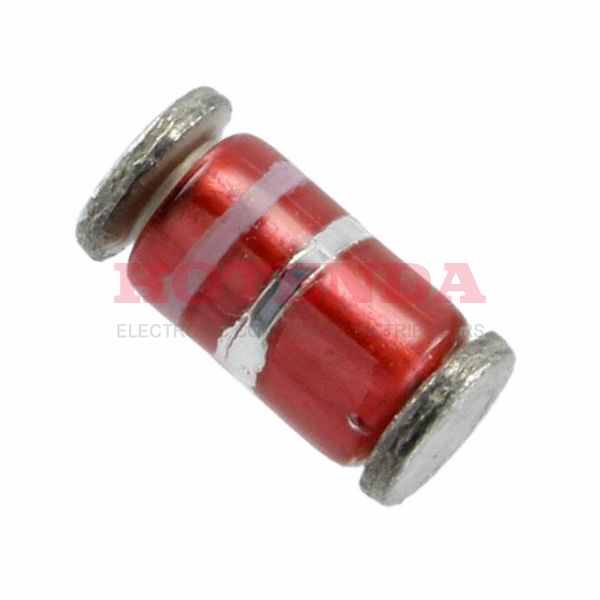

Description:ZENER DIODE 100Ohm ±10% 22V 10nA @ 18V -65°C~175°C 500mW 2 Terminations DO-213AB, MELF

Case Package:SOT-23

Datasheet:CDLL5541A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 4 weeks ago)
Factory Lead Time	15 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Bulk
Published	2013
Tolerance	±10%
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	2
JESD-30 Code	O-LELF-R2
Qualification Status	Not Qualified
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Impedance	100Ohm
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	10nA @ 18V
Voltage - Forward (Vf) (Max) @ If	1.1V @ 200mA
Impedance-Max	100Ohm
Reference Voltage	22V
Voltage - Zener (Nom) (Vz)	22V
Zener Voltage	22V
Voltage Tol-Max	10%
JEDEC-95 Code	DO-213AA
Working Test Current	1mA
RoHS Status	Non-RoHS Compliant

CDLL5541A Product Details

CDLL5541A Overview

In order to supply this electrical device, a reverse leakage current of 10nA @ 18V is required.This value (Tol) represents the maximum voltage that can be supplied.Zener (Nom) voltage is reduced to 22V during operation.This device should be operated with 1mA as the working test voltage.1.1V @ 200mA is achieved when the maximum voltage - Forward (Vf) is applied for its operation.
