Name: CDLL4713
Brand: Microsemi Corporation
SKU: CDLL4713
Price: 3.36000 USD
Availability: InStock

new-10%

CDLL4713

Manufacturer part number:CDLL4713

Manufacturer:Microsemi Corporation

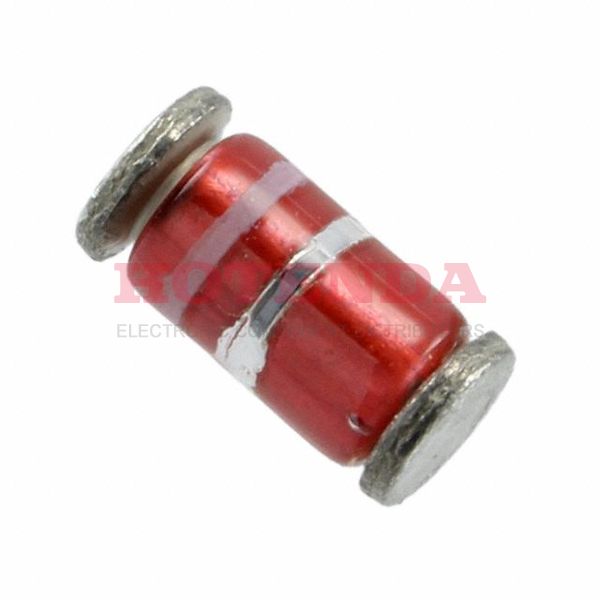

Description:ZENER DIODE ±5% 30V 10nA @ 22.8V -65°C~175°C 500mW 2 Terminations DO-213AB, MELF

Case Package:SOT-23

Datasheet:CDLL4713 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 4 weeks ago)
Factory Lead Time	15 Weeks
Contact Plating	Lead, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Bulk
Published	1999
Tolerance	±5%
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Additional Feature	METALLURGICALLY BONDED
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Number of Elements	1
Polarity	UNIDIRECTIONAL
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	10nA @ 22.8V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	1.1V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	10nA
Test Current	50μA
Reference Voltage	30V
Zener Voltage	30V
Voltage Tol-Max	5%
Voltage Tolerance	5%
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant

CDLL4713 Product Details

CDLL4713 Overview

This electrical device requires reverse leakage current of 10nA @ 22.8V.Tol is the maximum voltage that can be supplied (5%).Reverse leakage current reaches 10nA at its maximum.Zener single diode reaches 1.1V @ 200mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).
