Name: CDLL4118
Brand: Microsemi Corporation
SKU: CDLL4118
Price: 3.45000 USD
Availability: InStock

new-10%

CDLL4118

Manufacturer part number:CDLL4118

Manufacturer:Microsemi Corporation

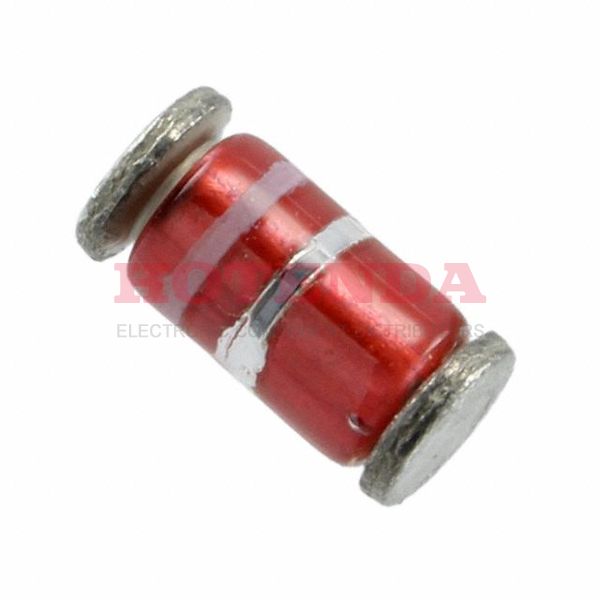

Description:ZENER DIODE 150Ohm ±5% 27V 50nA @ 20.5V -55°C~175°C 500mW 2 Terminations DO-213AB, MELF

Case Package:SOT-23

Datasheet:CDLL4118 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 4 weeks ago)
Factory Lead Time	15 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-55°C~175°C
Packaging	Bulk
Published	1999
Tolerance	±5%
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	TIN LEAD
Additional Feature	METALLURGICALLY BONDED
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	150Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	50nA @ 20.5V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	1.1V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	10nA
Impedance-Max	150Ohm
Test Current	250μA
Reference Voltage	27V
Zener Voltage	27V
Voltage Tol-Max	5%
Voltage Tolerance	5%
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant

CDLL4118 Product Details

CDLL4118 Overview

In order to supply this electrical device, a reverse leakage current of 50nA @ 20.5V is required.This value (Tol) represents the maximum voltage that can be supplied.A reverse leakage current that reaches 10nA is the maximum.1.1V @ 200mA is achieved when the maximum voltage - Forward (Vf) is applied for its operation.
