1N829AUR

  • 1N829AUR - ZENER DIODE 10Ohm ±5% 6.2V 2μA @ 3V -55°C~175°C 500mW 2 Terminations DO-213AA (Glass)
  • 1N829AUR - ZENER DIODE 10Ohm ±5% 6.2V 2μA @ 3V -55°C~175°C 500mW 2 Terminations DO-213AA (Glass)

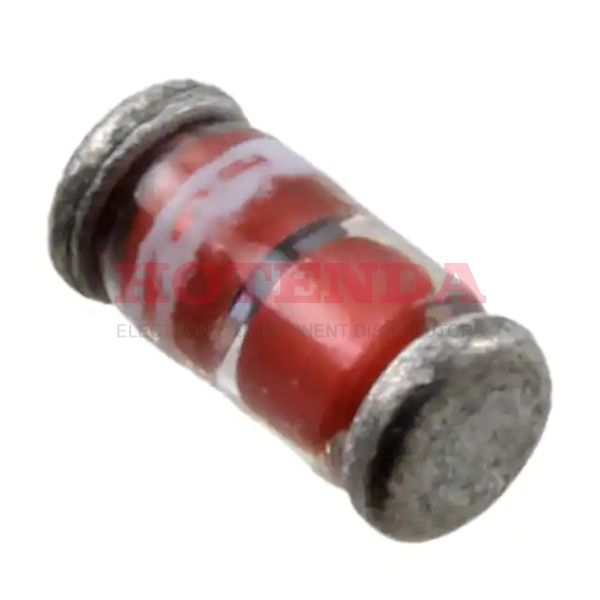

1N829AUR

1N829AUR

Microsemi Corporation

ZENER DIODE 10Ohm ±5% 6.2V 2μA @ 3V -55°C~175°C 500mW 2 Terminations DO-213AA (Glass)

SOT-23

1N829AUR Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-213AA (Glass)
Number of Pins 2
Diode Element Material SILICON
Operating Temperature-55°C~175°C
PackagingBulk
Tolerance ±5%
JESD-609 Code e0
Pbfree Code no
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish TIN LEAD
HTS Code8541.10.00.50
Max Power Dissipation500mW
Terminal Position END
Terminal FormWRAP AROUND
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count2
Qualification StatusNot Qualified
Number of Elements 1
Impedance10Ohm
Element ConfigurationSingle
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 2μA @ 3V
Power Dissipation500mW
Case Connection ISOLATED
Impedance-Max 10Ohm
Test Current 7.5mA
Reference Voltage6.2V
Zener Voltage 6.2V
Voltage Tol-Max 4.84%
Voltage Tolerance5%
Voltage Temp Coeff-Max 0.031mV/°C
RoHS StatusNon-RoHS Compliant
In-Stock:258 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$36.11000$36.11
500$35.7489$17874.45
1000$35.3878$35387.8
1500$35.0267$52540.05
2000$34.6656$69331.2
2500$34.3045$85761.25

1N829AUR Product Details

1N829AUR Overview


The reverse leakage current for this electrical device is 2μA @ 3V.Voltage (Tol) 4.84% is the maximum possible.Temp Coeff reaches 0.031mV/°C when the voltage reaches its maximum.

1N829AUR Features


reverse leakage current of 2μA @ 3V
2μA @ 3V is the maximum voltage (Tol)


1N829AUR Applications


There are a lot of Microsemi Corporation
1N829AUR applications of zener single diodes.
