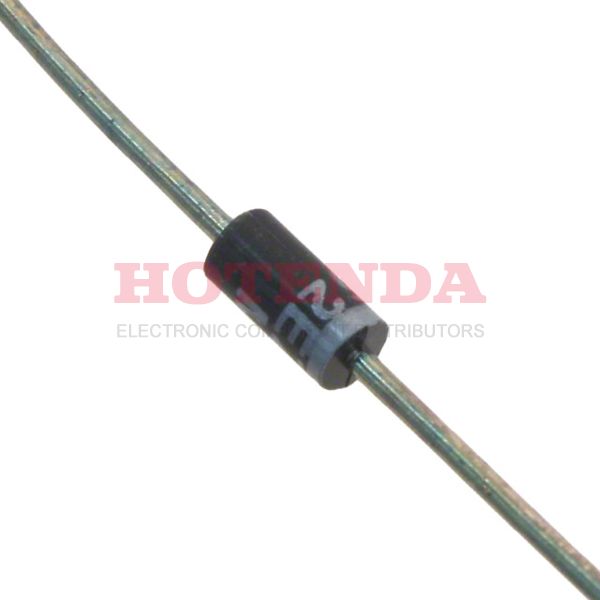

Name: 1EZ160D2E3/TR8
Brand: Microsemi Corporation
SKU: 1EZ160D2E3/TR8
Availability: InStock

new-10%

1EZ160D2E3/TR8

Manufacturer part number:1EZ160D2E3/TR8

Manufacturer:Microsemi Corporation

Description:1.4kOhms ±2% 160V 500nA @ 121.6V -65°C~150°C 1W DO-204AL, DO-41, Axial

Case Package:SOT-23

Datasheet:1EZ160D2E3/TR8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Number of Pins	2
Supplier Device Package	DO-204AL (DO-41)
Operating Temperature	-65°C~150°C
Published	2006
Packaging	Tape & Reel (TR)
Tolerance	±2%
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-65°C
Max Power Dissipation	1W
Base Part Number	1EZ160
Impedance	1.4kOhm
Element Configuration	Single
Current - Reverse Leakage @ Vr	500nA @ 121.6V
Voltage - Forward (Vf) (Max) @ If	1.2V @ 200mA
Power - Max	1W
Max Reverse Leakage Current	500nA
Impedance-Max	1.4kOhms
Voltage - Zener (Nom) (Vz)	160V
Zener Voltage	160V
RoHS Status	RoHS Compliant
Radiation Hardening	No

1EZ160D2E3/TR8 Product Details

1EZ160D2E3/TR8 Overview

In order to supply this electrical device, a reverse leakage current of 500nA @ 121.6V is required.A reverse leakage current that reaches 500nA is the maximum.Zener (Nom) voltage is reduced to 160V during operation.1.2V @ 200mA is achieved when the maximum voltage - Forward (Vf) is applied for its operation.
