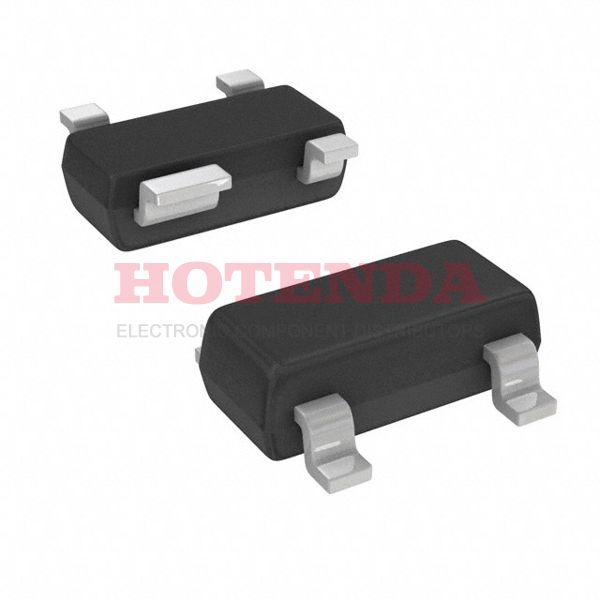

Name: TCM812RERCTR
Brand: Microchip Technology
SKU: TCM812RERCTR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Number of Pins	4
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2002
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Type	Simple Reset/Power-On Reset
Terminal Finish	Matte Tin (Sn)
Subcategory	Power Management Circuits
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	3V
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	TCM812R
Output	Push-Pull, Totem Pole
Pin Count	4
Power Supplies	3V
Number of Channels	1
Max Supply Voltage	5.5V
Min Supply Voltage	1.1V
Operating Supply Current	4.75μA
Adjustable Threshold	NO
Watchdog Timer	No
Reset	Active High
Voltage - Threshold	2.63V
Number of Voltages Monitored	1
Reset Timeout	140ms Minimum
Min Reset Threshold Voltage	2.58V
Max Reset Threshold Voltage	2.68V
Threshold Voltage	+2.63V
Undervoltage Threshold	2.58V
Overvoltage Threshold	2.68V
Length	2.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TCM812RERCTR Product Details

TCM812RERCTR Overview

Power management is mounted through 4 terminals. Packaged in the form of a Tape & Reel (TR), power management is easy to use. As a reference, this IC management includes 1 functions for your convenience. Depending on the power managment ic you are looking at, you can find a total of 1 channels. Please find attached TO-253-4, TO-253AA functions for your reference in this IC power. Compared to other Simple Reset/Power-On Reset products, this PMIC has a lot of benefits to offer. IC management is specified that the package peak reflow temperature should be 260. There is a voltage supply of 3V for the PMIC chip, and the chip conducts at that voltage. In a 1 supply voltage, the PMIC chip conducts. The power management is mounted by a Surface Mount-axis. It is possible to subcategorize this power ic as a Power Management Circuits chip. The total number of pins on this power management is 4. This power management system has 4 pins. Supply voltage (Vsup) should be at least 1.1V for this power management. The maximum supply voltage (Vsup) is not to exceed 5.5V volts in this IC management. Surface Mount mounting is recommended. We recommend setting the supervisors to -40°C~85°C TA degrees. The output voltage of this power managment ic during operation is Push-Pull, Totem Pole. There is a 4.75μA supply current present in the power management. You can always use TCM812R, the base supervisor number, to search for similar PMICs of the manufacturer. The voltage supervisor requires a power source of 3V volts in order to work correctly.
