Name: TC53N2902ECTTR
Brand: Microchip Technology
SKU: TC53N2902ECTTR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Number of Pins	5
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2002
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Type	Simple Reset/Power-On Reset
Terminal Finish	MATTE TIN
Subcategory	Power Management Circuits
Max Power Dissipation	240mW
Technology	MOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	2V
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	TC53N2902
Output	Open Drain or Open Collector
Pin Count	5
Number of Channels	1
Max Supply Voltage	10V
Min Supply Voltage	1.5V
Operating Supply Current	4.2μA
Power Dissipation	240mW
Max Supply Current	4.2μA
Adjustable Threshold	NO
Watchdog Timer	No
Reset	Active Low
Voltage - Threshold	2.9V
Number of Voltages Monitored	1
Reset Timeout	200μs Maximum
Min Reset Threshold Voltage	2.842V
Max Reset Threshold Voltage	2.958V
Threshold Voltage	+2.9V
Undervoltage Threshold	2.842V
Overvoltage Threshold	2.958V
Length	2.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

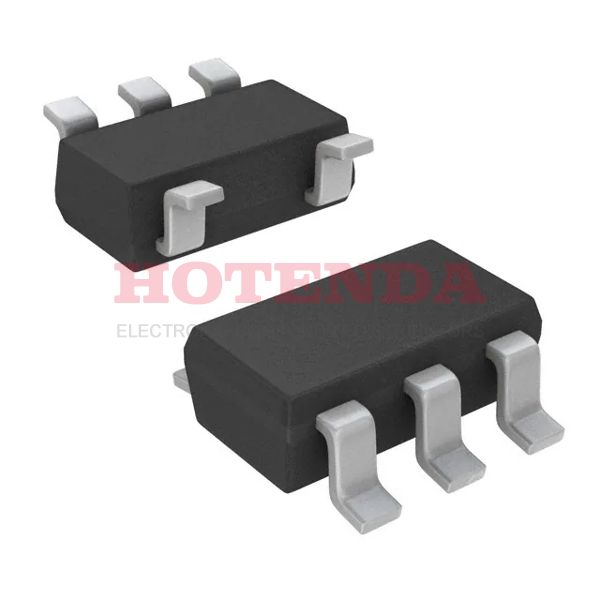

TC53N2902ECTTR Product Details
