Name: TC1301B-GDDVUA
Brand: Microchip Technology
SKU: TC1301B-GDDVUA
Price: 0.68000 USD
Availability: InStock

new-10%

TC1301B-GDDVUA

Manufacturer part number:TC1301B-GDDVUA

Manufacturer:Microchip Technology

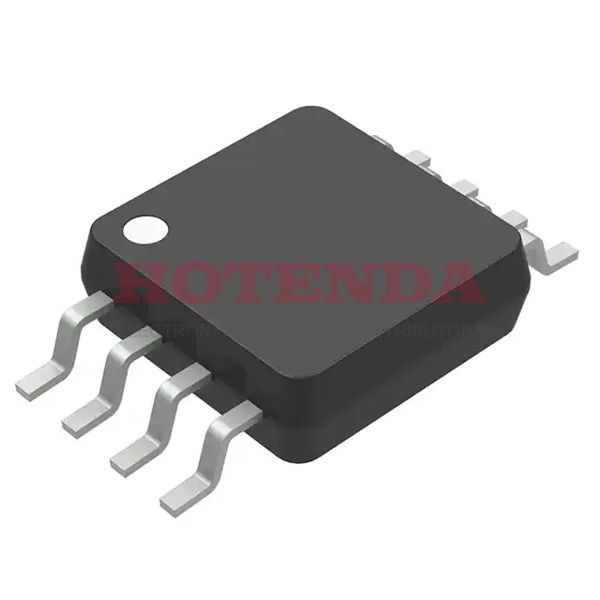

Description:Enable, Reset Fixed 0.65mm TC1301B PMIC TC1301B Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:TC1301B-GDDVUA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Number of Pins	8
Supplier Device Package	8-MSOP
Mounting Style	SMD/SMT
Supplier Package	MSOP
Input Voltage Range	6, 2.7 V
Maximum Input Voltage	6 V
Junction to Ambient	208 °C/W
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Product Status	Active
Mfr	Microchip Technology
Base Product Number	TC1301
Package	Tube
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2008
Series	TC1301B
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	TC1301B
Pin Count	8
Function	LDO
Number of Outputs	2
Voltage - Input (Max)	6V
Output Voltage	2.5V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.3/0.15 A
Current - Output	300mA, 150mA
Quiescent Current	114μA
Control Features	Enable, Reset
Accuracy	0.5 %
Output Voltage 1	2.7V
Voltage - Output (Min/Fixed)	2.7V 3V 2.5V
Number of Regulators	2
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	180μA
Voltage Dropout (Max)	0.18V @ 300mA 0.25V @ 150mA
PSRR	58dB (100Hz)
Dropout Voltage	104mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.15V
Voltage - Output (Max)	-
Screening Level	Extended
Input Voltage Absolute-Max	6.5V
Input Bias Current	58μA
Output Voltage 2	3V
Line Regulation	0.02 %/V
Load Regulation	0.1 %
Product Category	LDO Voltage Regulators
Length	3mm
Height Seated (Max)	1.1mm
Width	3mm
Height	0.85 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TC1301B-GDDVUA Product Details

TC1301B-GDDVUA Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) package. There are 8 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 2 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 300mA, 150mA. IC voltage regulator has a sum of 8 pins. To ensure prompt, sufficient performance, this part features 2 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 8. FYI, the basic part number for this IC regulator is TC1301B. It operates in the 114μA Quiescent Current state. It is part of the TC1301B Series.
