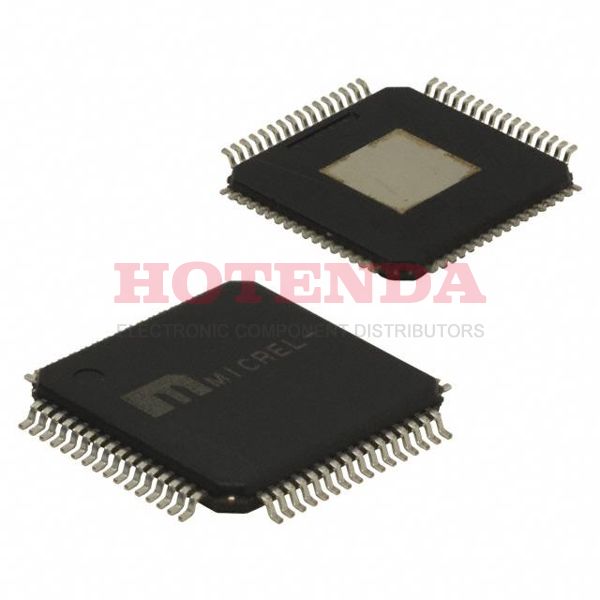

SY89538LHH TR Overview
Tape & Reel (TR)-method packaging is used for clock ICs. Embedded in the 64-TQFP Exposed Pad package is this Clock PLL. It is designed that the Clock PLL's input should be CMOS, HSTL, LVDS, LVPECL, LVTTL, SSTL, Crystal. For full access to the electronic component's capabilities, 1 circuits are implemented. 756MHz is the maximal value for normal operation. Due to the Surface Mount-shape, this electronic component can be conveniently installed on the panel. In terms of supply voltage, RF synthesizer works with 2.375V~3.6V. Using the test statistics, we estimate that the ambient temperature should be 0°C~85°C. A frequency synthesizer which is compatible with the LVDS, LVPECL logic levels is presented here. It is possible to classify this electronic component as a Clock Synthesizer/Fanout Buffer. Related electrical parts can be found for the base part number SY89538. This clock generator is a member of Precision Edge? series.
SY89538LHH TR Features
Available in the 64-TQFP Exposed Pad
SY89538LHH TR Applications
There are a lot of Microchip Technology SY89538LHH TR Clock Generators applications.
- Precision auxiliary angle deflection measurement
- Wireless infrastructure
- Bluetooth transmitters
- Frequency synthesis
- Digital HDTV systems
- Remote telemetry and instrumentation
- High-frequency induction heating
- Picocells, femtocells and small cells
- Clock signals to the high-speed Digital RF circuits
- Wide area power system
