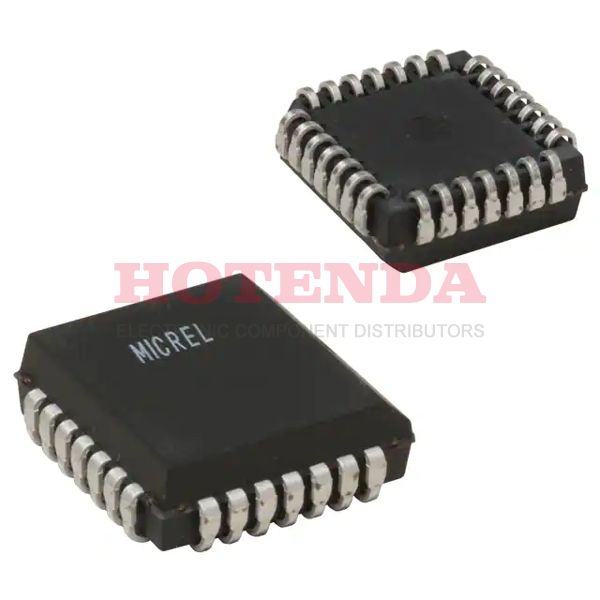

SY10E256JC Overview
It is included in the 28-LCC (J-Lead) in order to save board space.As a result, it is packaged in a way that is referred to as Tube.Mounting is performed using Surface Mount.The analog IC used in the multiplexers can be referred to as Multiplexer.The operating temperature of 0°C~85°C will not be susceptible to external factors.Using a -4.2V~-5.5V supply voltage provides digital controlled switch's superior flexibility for designers.Multiplexers in the 10E series are suitable for a wide range of applications.There are 28 terminations included in its basic configuration.As its base part number is 10E256, logic switch can also be used to find its related parts.It is the end of conductors that is represented by J BEND.The logic switch is a member of the 10E family.In this signal multiplexer, there are 3 bits provided.A power supply is provided for mux switch's normal operation of -5.2V.A multiplexer such as this has 4 inputs available.
SY10E256JC Features
Supplied in the 28-LCC (J-Lead) package
Power supplies of -5.2V
SY10E256JC Applications
There are a lot of Microchip Technology SY10E256JC Signal Switches / Multiplexers / Decoders applications.
- VGA
- CNC machines
- Enabling different rows of memory depending on address in memory chips
- Memory system of computers
- Speed control of medern motors
- Data communication
- Small scale TV wall
- Electronically controlled engine system
- Telephone network
- Analog to digital conversion
