Name: SST89E58RD2A-40-C-NJE
Brand: Microchip Technology
SKU: SST89E58RD2A-40-C-NJE
Availability: InStock

new-10%

SST89E58RD2A-40-C-NJE

Manufacturer part number:SST89E58RD2A-40-C-NJE

Manufacturer:Microchip Technology

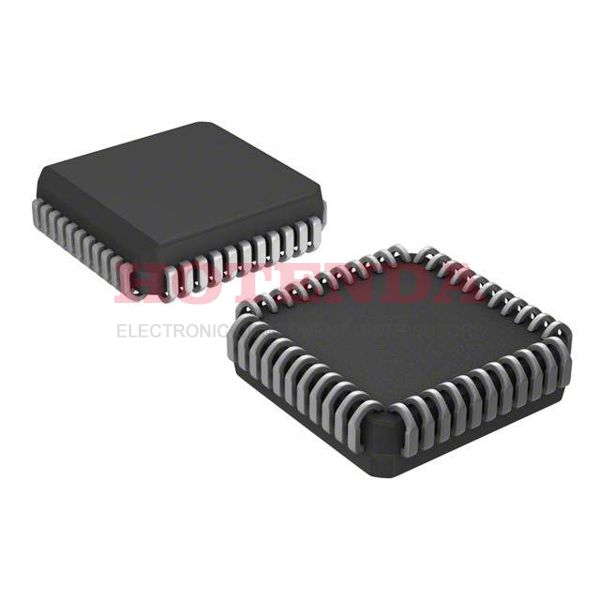

Description:40KB 40K x 8 FLASH 8051 8-Bit Microcontroller FlashFlex® Series SST89E58RD2A 44 Pin 40MHz 5V 44-LCC (J-Lead)

Case Package:SOT-23

Datasheet:SST89E58RD2A-40-C-NJE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Mounting Type	Surface Mount
Package / Case	44-LCC (J-Lead)
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-PLCC (16.59x16.59)
Data Converters	--
Package	Tube
Base Product Number	SST89E58RD2A
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	0°C~70°C
Packaging	Tube
Series	FlashFlex®
Published	2001
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	1.5W
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	245
Supply Voltage	5V
Terminal Pitch	1.27mm
Frequency	40MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	SST89E58RD2A
Pin Count	44
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	4.5V
Interface	EBI/EMI, SPI, UART, USART
Memory Size	40kB
Oscillator Type	External
Number of I/O	36
Speed	40MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8051
Peripherals	Brown-out Detect/Reset, POR, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	40KB 40K x 8
Connectivity	EBI/EMI, SPI, UART/USART
Supply Current-Max	88mA
Bit Size	8
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
Address Bus Width	16
ROM (words)	40960
EEPROM Size	--
On Chip Program ROM Width	8
Boundary Scan	NO
Low Power Mode	NO
Number of Programmable I/O	32
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	1024
Number of Serial I/Os	1
Number of External Interrupts	4
On Chip Data RAM Width	8
Length	16.54mm
Height Seated (Max)	4.57mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SST89E58RD2A-40-C-NJE Product Details

SST89E58RD2A-40-C-NJE Overview

This Microcontroller comes in a 44-LCC (J-Lead) package. This Microcontroller has 36 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in 0°C~70°C Operating Temperature. Microcontroller runs in FlashFlex® Series. The size of the program memory of Microcontroller is 40KB 40K x 8. MCU is powered by 8051 Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 44 terminals. Microcontroller comes with 8 bit size. The component always operates in 5V supply voltage. MCU chip has NO DMA channels. The part owns 40kB memory size. You can find alternatives through the base part number SST89E58RD2A. MCU's frequency is 40MHz. The device works in YES PWM channels. The pin number of the component remains 44. It has 3 timers/counters. It counts 44 pins. It programs in 32 Programmable I/O. The part has 1 serial I/Os incorporated. 4 external interrupts are included in the eletrical part.
