SM802128UMG Overview
Clock generator is packaged in the way of Tray. Clock PLL is embedded in the 44-VFQFN Exposed Pad package. LVCMOS, Crystal is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 312.5MHz is the maximal value for normal operation. PLL clock is mounted in the way of Surface Mount. Clock generators should operate with the voltage supply of 2.375V~3.465V. The temperature should be set at -40°C~85°C to ensure reliable performance. LVPECL is designed for clock generator's output. According to the base part number, its related parts can be founded. Clock generator is designed with 44 pins. The operating temperature should be higher than -40°C. The operating temperature should be lower than 85°C. This clock generator is a member of ClockWorks™, RotaryWave™ series. Clock generator operates with the maximal supply voltage of 2.625V. Clock PLL operates with the minimal supply voltage of 2.375V. It is able to realize high efficiency when operating at a frequency of 312.5MHz. The maximal current supplied for phase locked loop's operation reaches 275mA.
SM802128UMG Features

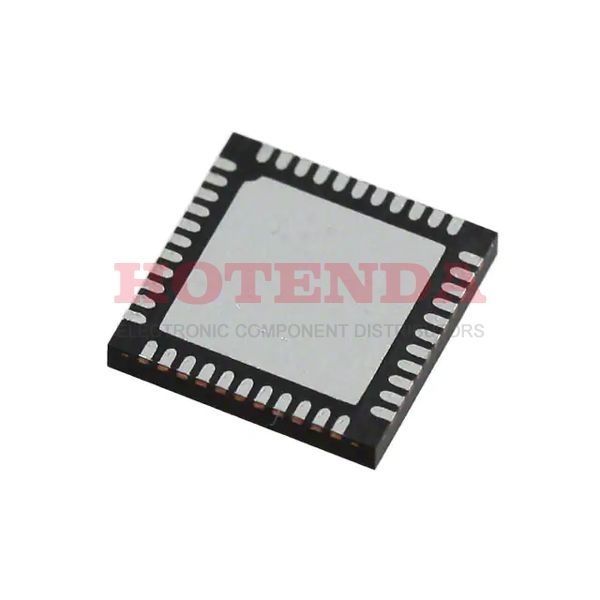

Available in the 44-VFQFN Exposed Pad
SM802128UMG Applications
There are a lot of Microchip Technology
SM802128UMG Clock Generators applications.
- Wireless infrastructure
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
