Name: SG7905AT
Brand: Microchip Technology
SKU: SG7905AT
Availability: InStock

new-10%

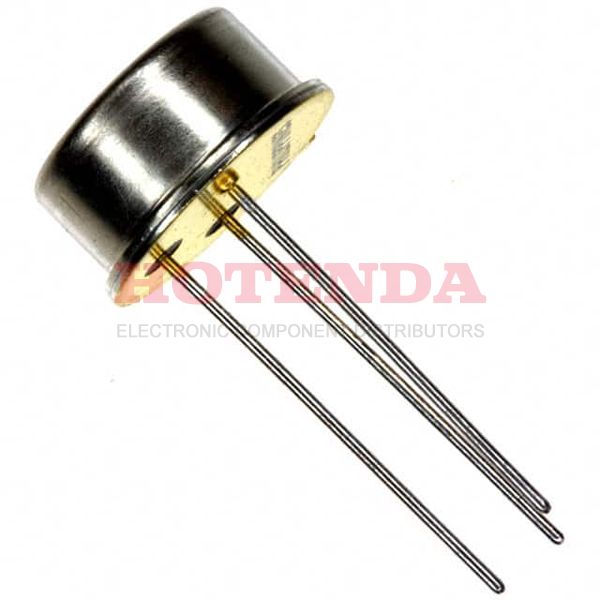

SG7905AT

Manufacturer part number:SG7905AT

Manufacturer:Microchip Technology

Description:- Fixed SG7905 PMIC - Series TO-39

Case Package:SOT-23

Datasheet:SG7905AT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-39
Supplier Device Package	TO-99
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 55 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Bulk
Base Product Number	SG7905
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-55°C~150°C
Packaging	Bulk
Published	1999
Series	-
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	TIN LEAD
Terminal Position	BOTTOM
Terminal Form	WIRE
Number of Functions	1
Base Part Number	SG7905
JESD-30 Code	O-MBCY-W3
Number of Outputs	1
Voltage - Input (Max)	-35V
Output Voltage	-5V
Output Type	Fixed
Max Output Current	1.4A
Polarity	Negative
Output Configuration	Negative
Output Current	1.5 A
Current - Output	500mA
Quiescent Current	2mA
Control Features	-
Accuracy	1.5 %
Output Voltage 1	5V
Input Voltage (Min)	7.5V
Voltage - Output (Min/Fixed)	-5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	2.5mA
Voltage Dropout (Max)	2.3V @ 500mA
PSRR	54dB (120Hz)
Product Type	Linear Voltage Regulators
Dropout Voltage1-Nom	2.3V
Voltage Tolerance-Max	3%
Voltage - Output (Max)	-
Screening Level	MIL-STD-883
Input Voltage Absolute-Max	35V
Line Regulation	25 mV
Load Regulation	30 mV
Product	Negative Fixed Voltage Regulator
Product Category	Linear Voltage Regulators
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Exempt

SG7905AT Product Details

SG7905AT Overview

Bulk cases are used for delivery. The Liner regulator IC is packaged in TO-39 case. On the Linear IC itself, there are 3 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Through Hole operating temperature range by the Voltage Regulator IC. Default settings are set to -55°C~150°C degrees. There is a Negative configured as the output function for this IC regulator. There is a current output of 500mA from this regulator IC. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. For your information, the basic part number for this regulator IC is SG7905. In order to meet the operation requirements, its maximal output current reaches 1.4A. It operates in the 2mA Quiescent Current state. This IC regulator is a part of the - Series of devices.
