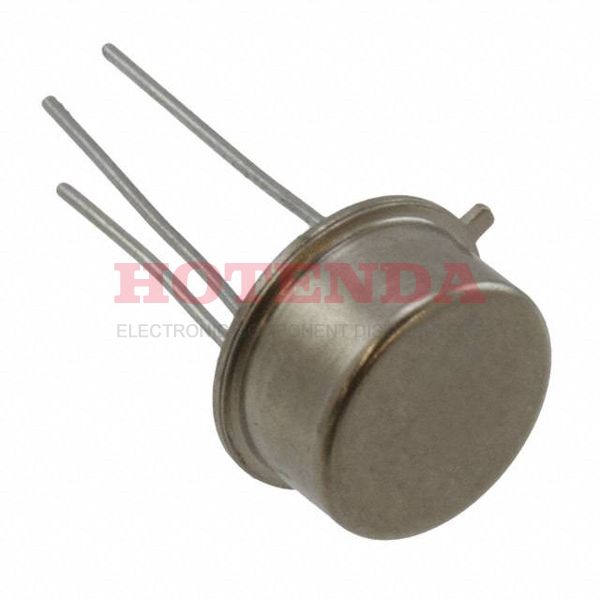

SG7815T-JAN Overview
The package is delivered in a Tray case. In order to package the IC voltage regulator, a TO-205AD, TO-39-3 Metal Can case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -55°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 500mA. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 3 pins may be available. For your information, part number SG7815 is the basic part number for this voltage regulator IC. It operates in the 6mA Quiescent Current state. The Military, MIL-STD-883 Series is a series of products made by D-Link. As a general rule, it is recommended that you use the IC voltage regulator when temperatures are below 150°C degrees Celsius. At the lowest operating temperature that can be reached by the chip, it is -55°C.
SG7815T-JAN Features
2V dropout voltage
The maximum operating temperature of -55°C
SG7815T-JAN Applications
There are a lot of Microchip Technology
SG7815T-JAN Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
