SG7815K-JAN Overview

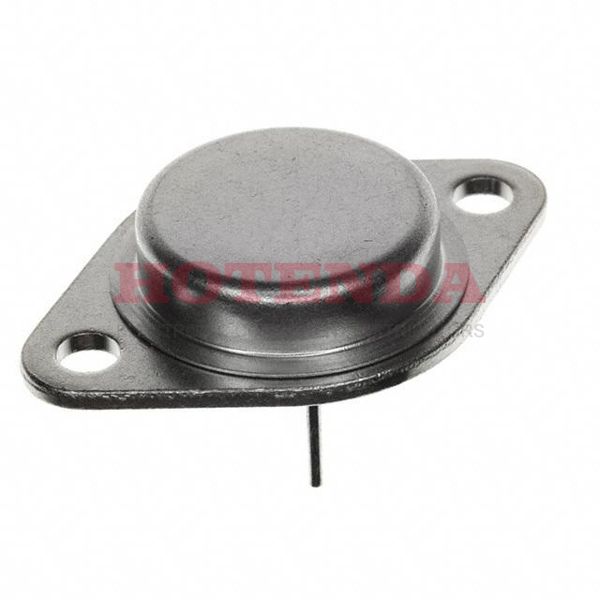

This Voltage Regulator IC comes inTray packaging. This battery regulator is contained in a TO-204AA, TO-3 package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at -55°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 1.5A. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. FYI, the basic part number for this IC regulator is SG7815. It operates in the 6mA Quiescent Current state. It is part of the Military, MIL-STD-883 Series. The regulator operates with a maximum operating temperature of 150°C. At the very least, the voltage regulator IC works with a -55°C operating temperature.
SG7815K-JAN Features
2V dropout voltage
The maximum operating temperature of -55°C
SG7815K-JAN Applications
There are a lot of Microchip Technology
SG7815K-JAN Linear Voltage Regulators applications.
- Home electric appliance
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
