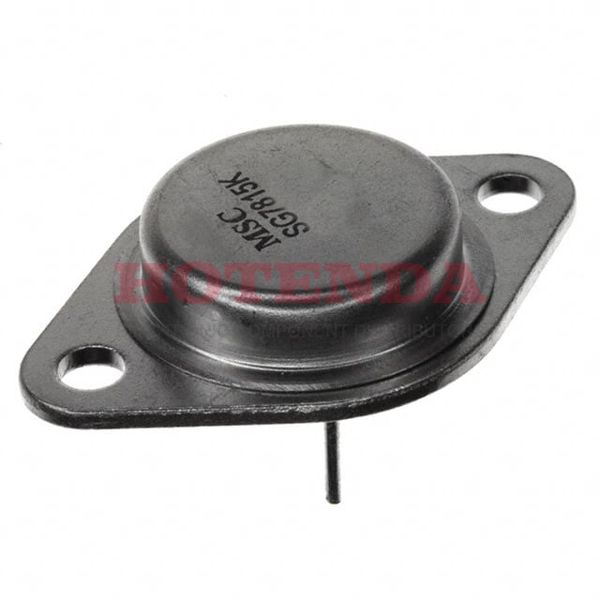

SG7815K Overview
The package contains a Bulk case. In TO-204AA, TO-3 cases, it is packaged. This gadget has 2 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Through Hole operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -55°C~125°C TA degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 1.5A at the moment. 2 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. As far as its dropout voltage is concerned, it is 10 volts. I just wanted to let you know that this IC voltage regulator has the part number SG7815 as its basic part number. When operating at maximum output current, the regulator IC reaches 1.5A. It operates in the 6mA Quiescent Current state. It belongs to the Military, MIL-STD-883 Series of regulators.
SG7815K Features
2V dropout voltage
SG7815K Applications
There are a lot of Microchip Technology
SG7815K Linear Voltage Regulators applications.
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
