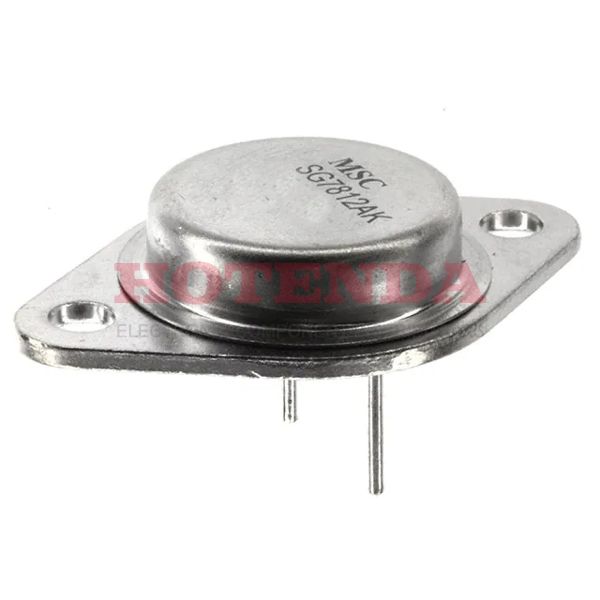

SG7812AK Overview
A Bulk case is used to deliver the Voltage Regulated IC. A TO-204AA, TO-3 case is used for packaging. As you can see, the IC chip has 2 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Through Hole varies. -55°C~125°C TA degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 1.5A. There are 2 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. For your information, this regulator's basic part number is SG7812. To meet operation requirements, the voltage regulator IC has a maximum output current of 1.5A. It operates in the 6mA Quiescent Current state. Among the Military, MIL-STD-883 Series, the IC voltage regulator is one of the most popular models.
SG7812AK Features
2V dropout voltage
SG7812AK Applications
There are a lot of Microchip Technology
SG7812AK Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
