SG7812AIG Overview

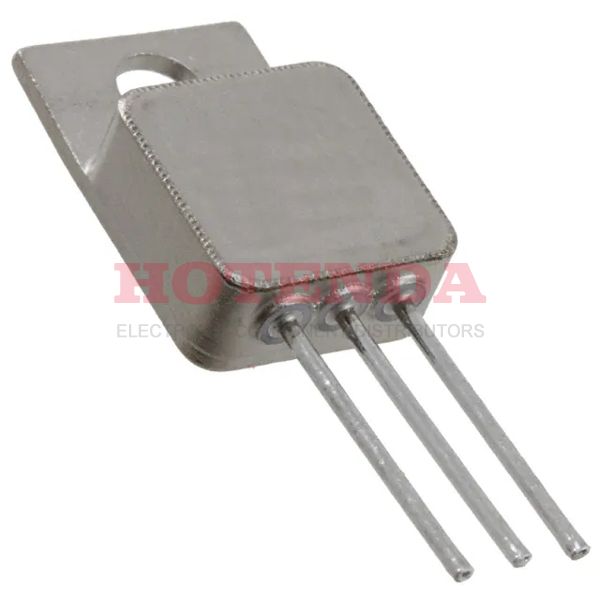

This Voltage Regulator IC comes inBulk packaging. This battery regulator is contained in a TO-257-3 package. There are 3 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at -55°C~125°C TA degrees. This regulator's output function is configured to be Positive. Its current output stands at 1.5A. IC voltage regulator has a sum of 3 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 3. FYI, the basic part number for this IC regulator is SG7812. It works in 1.5A output current at mostIt operates in the 6mA Quiescent Current state. It is part of the Military, MIL-STD-883 Series.
SG7812AIG Features
2V dropout voltage
SG7812AIG Applications
There are a lot of Microchip Technology
SG7812AIG Linear Voltage Regulators applications.
- Home electric appliance
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
